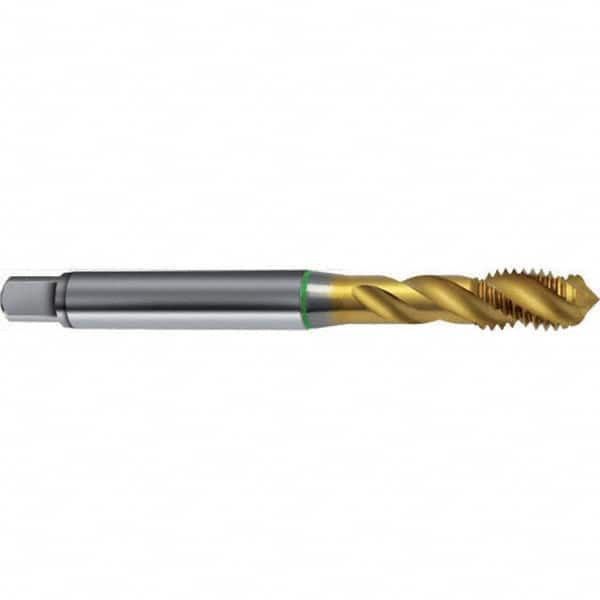

Guhring - M6x1.00 Metric 3 Flute 6H Modified Bottoming Spiral Flute Tap - High Speed Steel, TiN Finish, 80mm OAL, Right Hand Flute, Right Hand Thread, D11, Series 4311
Item #: 98844210
Brand: Guhring
Model #: 9043110060000
Exact Tooling IR#: 04
Features and Benefits
Modified bottoming chamfers are similar to bottoming chamfers, but they are longer and have more teeth. They are used for threading blind holes and have 2 to 2-1/2 threads.
High Speed Steel (HSS) provides good wear resistance and can be used in general purpose applications for both ferrous and nonferrous materials.
Titanium Nitride (TiN) is a multi-purpose coating which increases chip flow in softer materials. The heat and hardness resistance allows the tool to run at higher speeds than uncoated tools.
Spiral flutes are constructed of a high flute angle to remove chips more easily.
| Product Specifications | |
|---|---|
| Thread Size (mm) | M6x1.00 |
| Chamfer | Modified Bottoming |
| Class of Fit | 6H |
| Thread Limit | D11 |
| Number of Flutes | 3 |
| Material | High Speed Steel |
| Finish/Coating | TiN |
| Thread Direction | Right Hand |
| Flute Direction | Right Hand |
| Through Coolant | NonThrough Coolant |
| Overall Length (mm) | 80.00 |
| Thread Standard | Metric |
| Flute Type | Spiral |
| Style | Spiral Flute |
| Series/List | 4311 |
| Tapping Depth (mm) | 30.00 |
| Shank Diameter (mm) | 6.00 |
| Shank Length (mm) | 50 |
