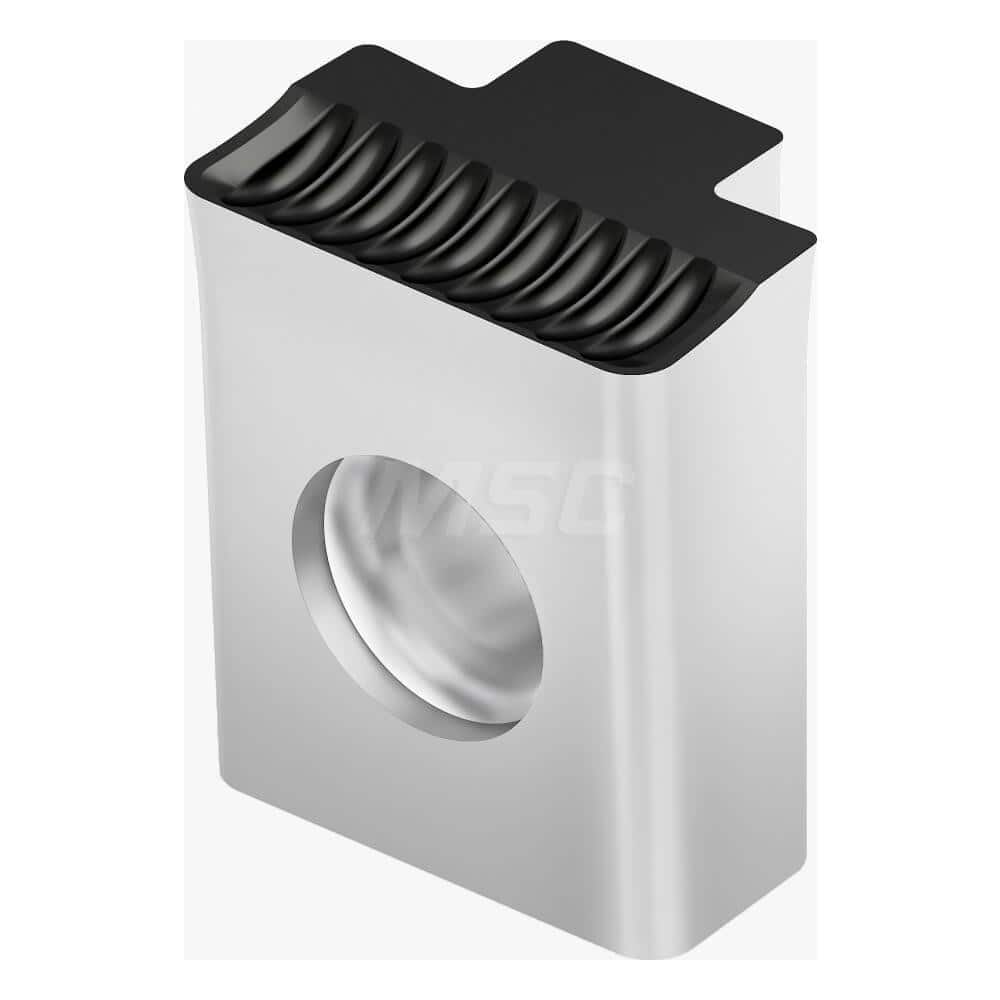

Grooving Insert: UX12EGD2 WKP13S, Solid Carbide Al2O3 & TiCN Finish, Neutral, 0.472″ Cutting Width, Series UX-E-GD2
Item #: 98927528
Brand: Walter
Model #: 7789314
Product Specifications
| Insert Style | UX12E |
| Insert Size Code | 2E1200N10 |
| Insert Material | Solid Carbide |
| Manufacturer Grade | WKP13S |
| Cutting Width (Decimal Inch) | 0.4720 |
| Insert Hand | Neutral |
| Corner Radius (Decimal Inch) | 0.0390 |
| Lead Angle | 0 |
| Multi-use Tool | Yes |
| Cutting Tool Application | Grooving; Parting |
| Series | UX-E-GD2 |
| Coating Process | CVD |
| Overall Length (Decimal Inch) | 0.3370 |
| Primary Workpiece Material | Cast Iron; Steel |
| Primary Workpiece Material Code | P; K |
| Ansi Code | UX12E1200N10GD2 WKP13S |
| Iso Code | UX12E1200N10GD2 WKP13S |
| Standards | ISO; ANSI |
| Maximum Corner Radius (Decimal Inch) | 0.0390 |
| Chip Breaker | GD2 |
| Coating/Finish | TiCN; Al2O3 |
