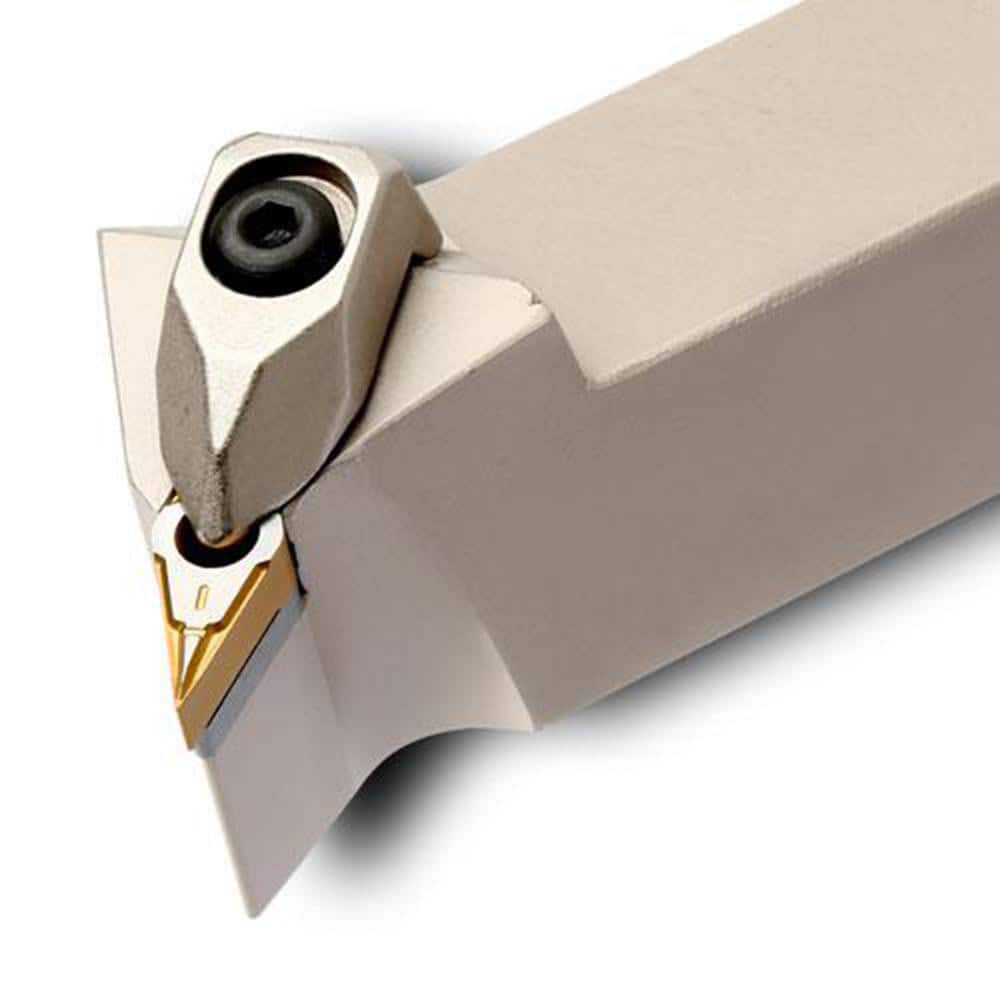

Indexable Turning Toolholders; Cutting Direction: Right Hand; Compatible Insert Size Code: VN..2.53.; Toolholder Style: TVQNR; Rake: Negative; Multi-use Tool: No; Lead Angle: 117.5; Insert Holding Method: Clamp; Shank Width (Decimal Inch): 0.7500; Shank W
Item #: 98953011
Brand: Ingersoll Cutting Tools
Model #: 6183994
Product Specifications
| Cutting Direction | Right Hand |
| Compatible Insert Size Code | VN..2.53. |
| Toolholder Style | TVQNR |
| Rake | Negative |
| Multi-use Tool | No |
| Lead Angle | 117.5 |
| Insert Holding Method | Clamp |
| Shank Width (Decimal Inch) | 0.7500 |
| Shank Width (Inch) | 3/4 |
| Shank Height (Decimal Inch) | 0.7500 |
| Shank Height (Inch) | 3/4 |
| Series | L (Gold Rhino); TVQNR |
| Overall Length (mm) | 4.50 |
| Overall Length (Decimal Inch) | 4.5000 |
| Cutting Tool Application | Turning |
| Head Length (Decimal Inch) | 1.3800 |
| Toolholder Material | Steel |
