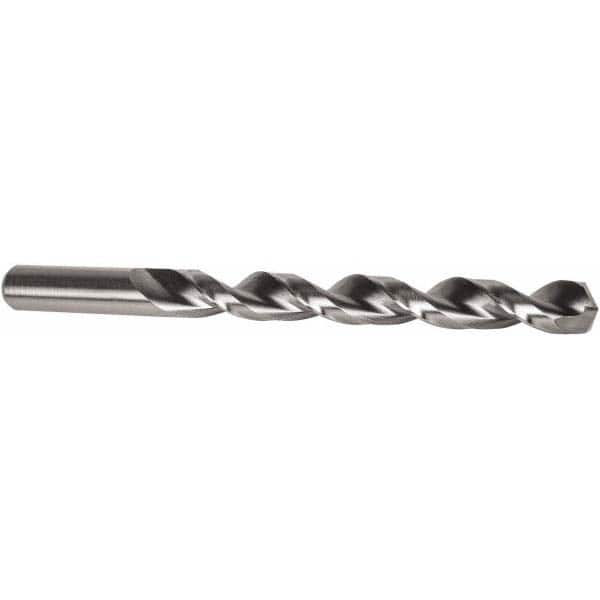

Precision Twist Drill - 6.8mm 135° High Speed Steel Jobber Drill
Item #: 78505930
Brand: Precision Twist Drill
Model #: 013168
Features and Benefits
High speed steel (HSS) provides good wear resistance and can be used in general purpose applications for both ferrous and nonferrous materials.
Bright provides a smooth, polished finish on the tool. It increases chip flow in softer materials such as aluminum, wood and plastic.
Parabolic flutes are constructed with a wider flute shape for increased chip flow.
| Product Specifications | |
|---|---|
| Drill Bit Size (mm) | 6.80 |
| Drill Bit Size (Decimal Inch) | 0.2677 |
| Drill Point Angle | 135 |
| Drill Bit Material | High Speed Steel |
| Drill Bit Finish/Coating | Bright |
| Flute Type | Parabolic |
| Cutting Direction | Right Hand |
| Shank Type | Straight |
| Coolant Through | No |
| Flute Length (Inch) | 2-23/32 |
| Flute Length (mm) | 69.00 |
| Overall Length (mm) | 109.00 |
| Overall Length (Inch) | 4-19/64 |
| Point Type | Split Point |
| Shank Diameter (mm) | 6.80 |
| Specification Designation | ANSI |
| Web Configuration | Tapered |
| Web Thinning | Web-Thinned |
| Drill Bit Grade | Heavy Duty |
| Series/List | QC21PM |
