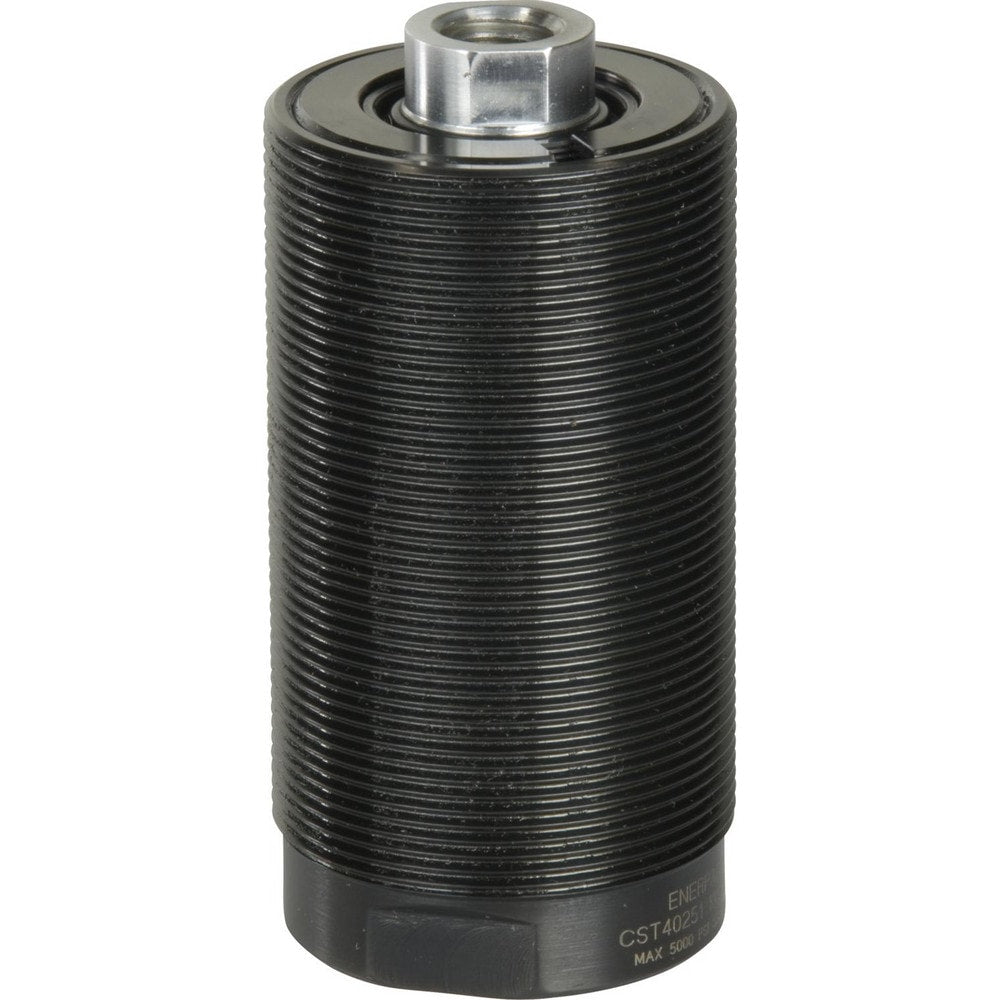

Compact Hydraulic Cylinders; Actuation: Single Acting; Rod Diameter (mm): 19.95; Body Material: Steel; Stroke Length (Decimal Inch): 1.0500; Maximum Working Pressure (Psi
Item #: 30092324
Brand: Enerpac
Model #: CST40251
Product Specifications
| Actuation | Single Acting |
| Rod Diameter (mm) | 19.95 |
| Body Material | Steel |
| Stroke Length (Decimal Inch) | 1.0500 |
| Maximum Working Pressure (Psi - 3 Decimals) | 5000.000 |
| Port Size | SAE #4 |
| Mount Type | Threaded |
| Bore Size (mm) | 38.15 |
| Retracted Length (Decimal Inch) | 3.73 |
| Extended Length (Inch) | 4.7800 |
| Load Capacity (Lb.) | 8800 |
| UNSPSC Code | 27121602 |
