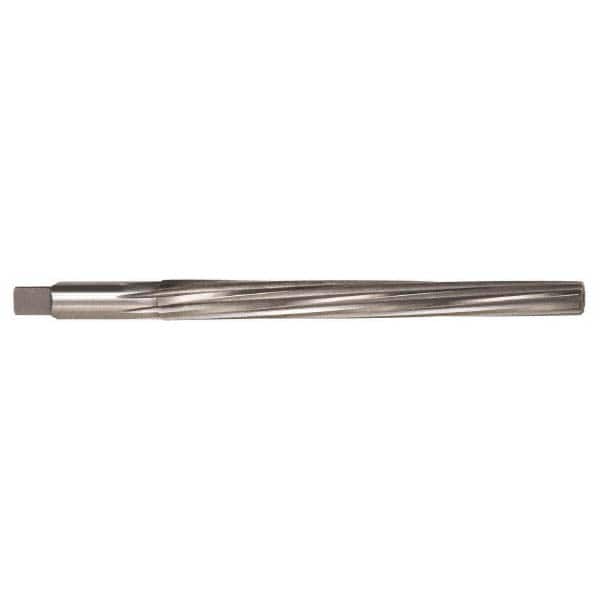

Alvord Polk - 10mm Pin, 0.528" Diam, 0.3898" Small End, 7/16" Diam Straight Shank, 6.417" Flute, Taper Pin Reamer
Item #: 86831237
Brand: Alvord Polk
Model #: 09707
Features and Benefits
Spiral flute reamers are used in blind and through-hole operations. They are able to bridge interrupted cuts such as keyways and cross sections.
| Product Specifications | |
|---|---|
| Taper Pin Size (mm) | 10.00 |
| Small End Diameter (Decimal Inch) | 0.3898 |
| Reamer Diameter (Decimal Inch) | 0.5280 |
| Flute Type | Spiral |
| Shank Type | Straight |
| Overall Length (mm) | 205 |
| Overall Length (Inch) | 8.0620 |
| Flute Length (mm) | 163 |
| Flute Length (Inch) | 6.4170 |
| Number of Flutes | 6 |
| Shank Diameter (mm) | 11.11 |
| Shank Diameter (Inch) | 7/16 |
| Spiral Direction | Left Hand |
| Cutting Direction | Right Hand |
| Reamer Material | High Speed Steel |
| Reamer Finish/Coating | Bright |
| Material Application | Mild Steel |
