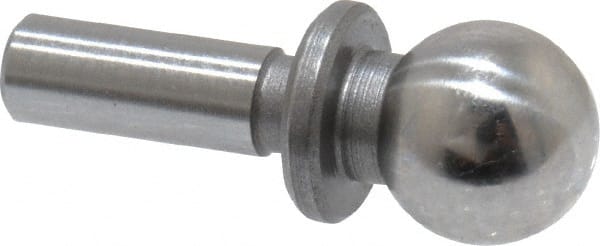

Jergens - 1/4" Ball Diam, 1/8" Shank Diam, Steel Inspection Tooling Ball - Slip-Fit Shank, 9/16" Ball Center to Shank Bottom, 0.2" Ball Center to Shoulder Bottom, with Shoulder
Item #: 99095408
Brand: Jergens
Model #: 29041
Exact Tooling IR#: 04
Features and Benefits
Steel is made up of an iron and carbon. It offers high tensile strength and corrosion resistance, but may offer some vibration during an operation.
| Product Specifications | |
|---|---|
| Tooling Ball Style | Inspection |
| Shoulder | Yes |
| Break-Away | No |
| Material | Steel |
| Ball Diameter (mm) | 6.35 |
| Ball Diameter (Inch) | 1/4 |
| Ball Diameter (Decimal Inch) | 0.2500 |
| Shank Diameter (mm) | 3.18 |
| Shank Diameter (Inch) | 1/8 |
| Shank Diameter (Decimal Inch) | 0.1250 |
| Shank Attachment Type | Slip-Fit |
| Shoulder Diameter (Inch) | 1/4 |
| Tapped Shank | No |
| Heat-Treated | Yes |
| Ball Center to Shank Bottom (Inch) | 9/16 |
| Ball Center to Shank Bottom (Decimal Inch) | 0.5625 |
| Ball Center to Shoulder Bottom (Decimal Inch) | 0.2000 |
| Shank Tolerance (Decimal Inch) | -0.0004; +0.0000 |
| Ball Tolerance (Decimal Inch) | ±0.0002 |
| Ball & Shank Concentricity (Decimal Inch) | 0.0002 |
| Ball Center to Shoulder Tolerance (Decimal Inch) | ±0.0002 |
