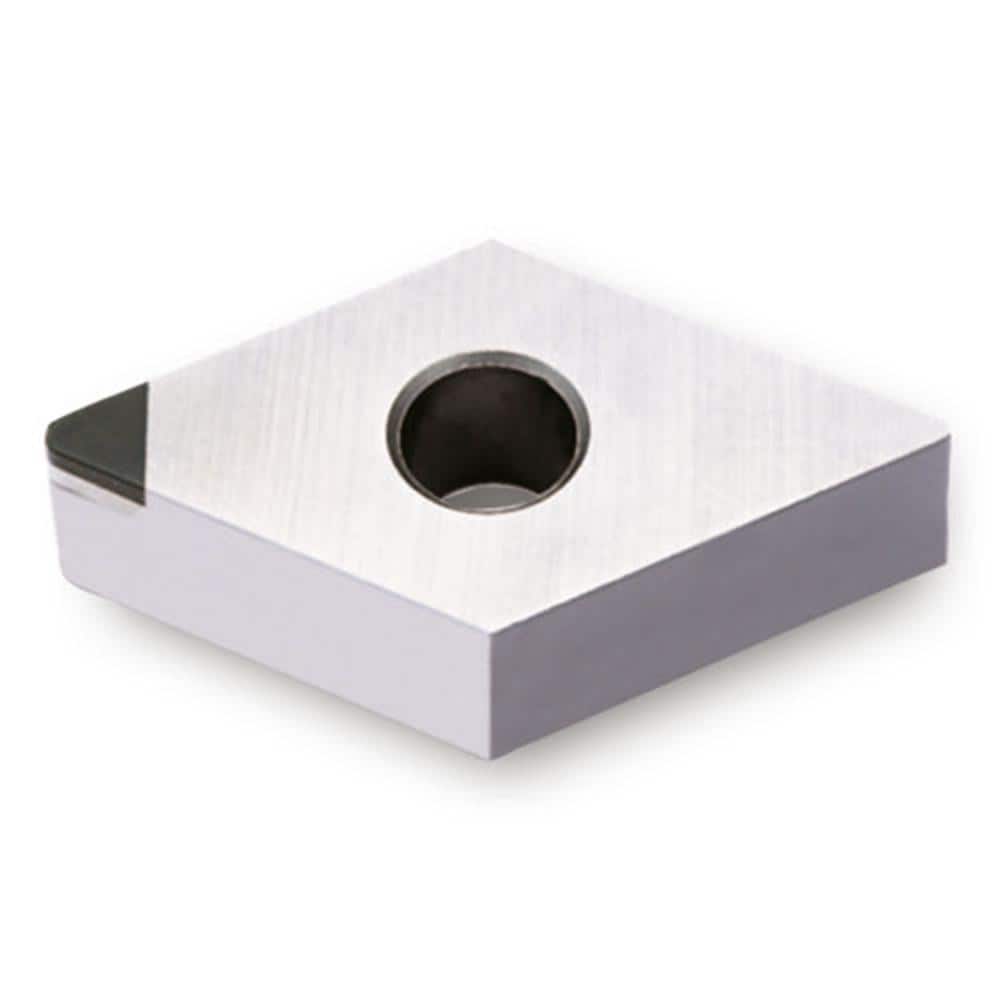

Turning Insert: DNGA433LS4 TB670, Cubic Boron Nitride Uncoated Finish, Neutral, 0.6100″ Long, 1/2″ Inscribed Circle, 0.0470″ Corner Radius, 55.0 ° N/A Diamond, Series DNGA
Item #: 99240806
Brand: Ingersoll Cutting Tools
Model #: 5403061
Product Specifications
| Insert Style | DNGA |
| Insert Shape Code | D |
| Insert Size Code | 433LS4 |
| Insert Shape | Diamond |
| Clearance Code | N |
| Tolerance Code | G |
| Insert Material | Cubic Boron Nitride |
| Manufacturer Grade | TB670 |
| Maximum Depth of Cut (Decimal Inch) | 0.0830 |
| Inscribed Circle (Inch) | 1/2 |
| Inscribed Circle (Decimal Inch) | 0.5000 |
| Insert Holding Method | Clamp |
| Width (Inch) | 1/2 |
| Insert Hand | Neutral |
| Insert Thickness (Decimal Inch) | 0.1870 |
| Corner Radius (Decimal Inch) | 0.0470 |
| Included Angle | 55.0 |
| Relief Angle | 0 |
| Series | DNGA |
| Coating Process | Uncoated |
| Rake | Negative |
| Wiper Edge | No |
| Insert Length (Decimal Inch) | 0.6100 |
| Number Of Cutting Edges | 4 |
| Primary Workpiece Material | Hardened Steel |
| Primary Workpiece Material Code | H |
| Ansi Code | DNGA433LS4TB670 |
| Iso Code | DNGA150412LS4 TB670 |
| Chip Breaker | A |
| Width (Decimal Inch - 4 Decimals) | 0.5000 |
| Coating/Finish | Uncoated |
