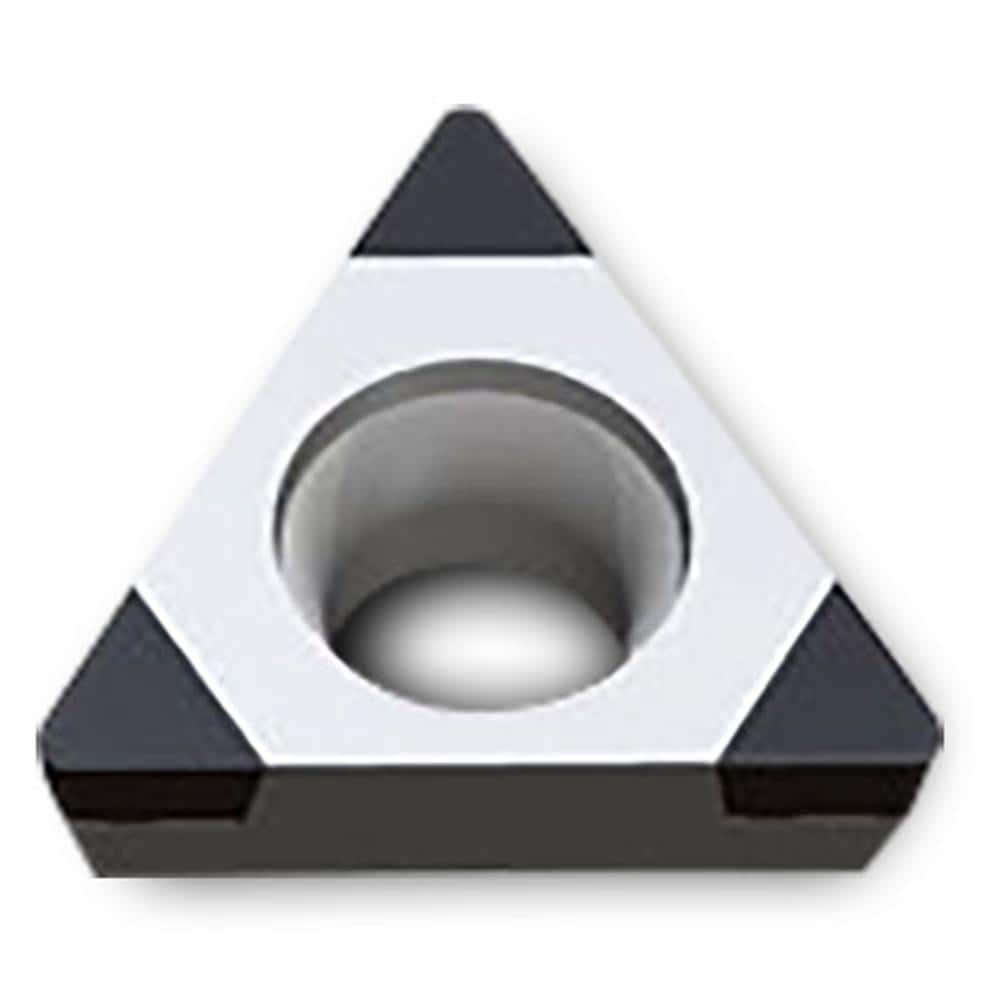

Turning Insert: TPGW331LS3 TB670, Cubic Boron Nitride Uncoated Finish, Neutral, 0.1100″ Long, 3/8″ Inscribed Circle, 0.0160″ Corner Radius, 60.0 ° N/A Triangle, Series TPGW
Item #: 99240814
Brand: Ingersoll Cutting Tools
Model #: 5403098
Product Specifications
| Insert Style | TPGW |
| Insert Shape Code | T |
| Insert Size Code | 331LS3 |
| Insert Shape | Triangle |
| Clearance Code | P |
| Tolerance Code | G |
| Insert Material | Cubic Boron Nitride |
| Manufacturer Grade | TB670 |
| Hole Diameter (Decimal Inch) | 0.1730 |
| Maximum Depth of Cut (Decimal Inch) | 0.1100 |
| Inscribed Circle (Inch) | 3/8 |
| Inscribed Circle (Decimal Inch) | 0.3750 |
| Insert Holding Method | Screw |
| Insert Hand | Neutral |
| Insert Thickness (Decimal Inch) | 0.1870 |
| Corner Radius (Decimal Inch) | 0.0160 |
| Included Angle | 60.0 |
| Relief Angle | 11 |
| Series | TPGW |
| Coating Process | Uncoated |
| Rake | Positive |
| Wiper Edge | No |
| Insert Length (Decimal Inch) | 0.1100 |
| Number Of Cutting Edges | 3 |
| Primary Workpiece Material | Hardened Steel |
| Primary Workpiece Material Code | H |
| Ansi Code | TPGW331LS3TB670 |
| Iso Code | TPGW160404LS3 TB670 |
| Chip Breaker | W |
| Width (Decimal Inch - 4 Decimals) | 0.1100 |
| Coating/Finish | Uncoated |
