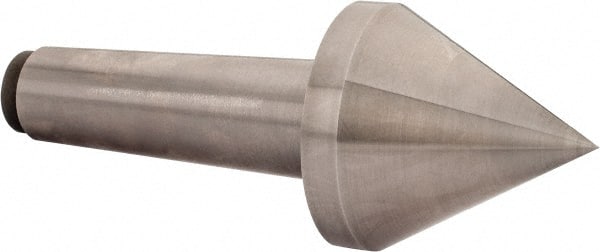

Riten - 3-1/2" Head Diam, Hardened Tool Steel Pipe Nose Point Solid Dead Center - 5MT Morse Taper, 3-1/2" Point Diam, 3.017" Point Length, 4.03" OAL
Item #: 99402398
Brand: Riten
Model #: 66105
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Center Type | Solid Center |
| Shank Type | Morse Taper |
| Shank Taper Size | 5MT |
| Point Style | Pipe Nose Point |
| Carbide-Tipped | No |
| Head Diameter (Inch) | 3-1/2 |
| Point Length (Decimal Inch) | 3.0170 |
| Point Diameter (Inch) | 3-1/2 |
| Head Length (Decimal Inch) | 3.5301 |
| Taper Length (Decimal Inch) | 3.5000 |
| Overall Length (Decimal Inch) | 4.0300 |
| Point to Gauge Line (Decimal Inch) | 4.0300 |
| Gage Line Clearance (Inch) | 1/2 |
