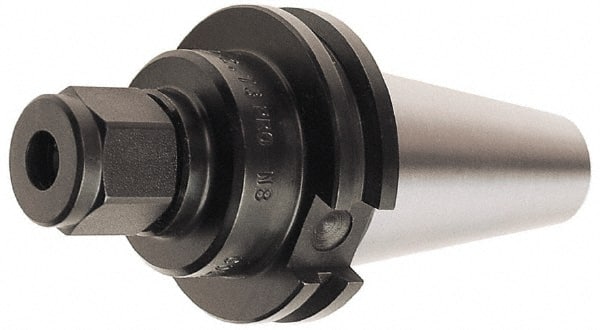

Collis Tool - 0.88" Capacity, 3" Projection, CAT40 Taper Shank, ER40 Collet Chuck - 0.0002" TIR, Through-Spindle & DIN Flange Coolant
Item #: 99405045
Brand: Collis Tool
Model #: 75488
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Collet System | ER |
| Collet Series | ER40 |
| Shank Type | Taper Shank |
| Taper Size | CAT40 |
| Projection (Inch) | 3 |
| Projection (Decimal Inch) | 3.0000 |
| Through Coolant | Yes |
| Maximum Collet Capacity (Decimal Inch) | 0.8800 |
| Actuator Type | Wrench |
| Nose Diameter (Decimal Inch) | 2.4800 |
| PSC Code | 5136 |
| TIR (Decimal Inch) | 0.0002 |
| Coolant Type | Through-Spindle & DIN Flange |
