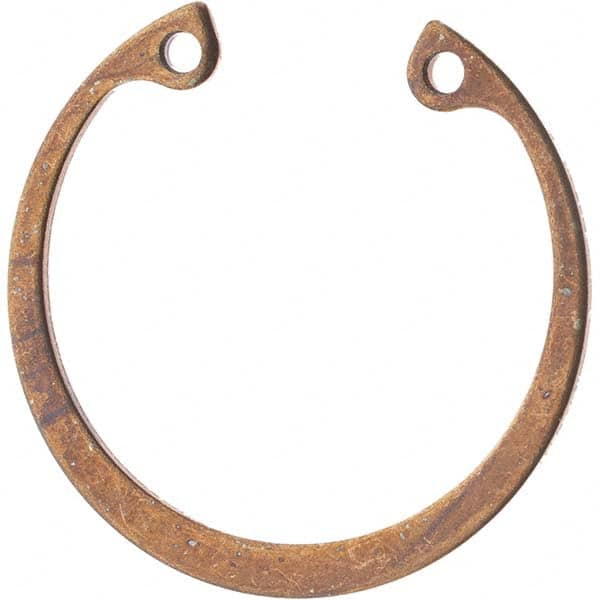

1-1/4″ Bore Diam, Beryllium Copper Internal Snap Retaining Ring 1-1/4″ Free OD, 0.056″ Groove Width x 0.04″ Groove Depth, 0.05″ Ring Thickness
Item #: 99616286
Brand: Rotor Clip
Model #: HO-125BC
Product Specifications
| Ring Type | Snap |
| System of Measurement | Inch |
| Groove Diameter | 1.33 in |
| Bore Diameter (Inch) | 1-1/4 |
| Groove Diameter Tolerance | -0.0040 to 0.0050 in |
| Free Diameter | 1.388 in |
| Free Outside Diameter | 1.25 in |
| Groove Diameter (Decimal Inch) | 1.3300 |
| Material | Beryllium Copper |
| Groove Width (Decimal Inch) | 0.056 in |
| Free Outside Diameter (Decimal Inch) | 1.2500 |
| Groove Width Tolerance | 0.000 to 0.004 in |
| Military Specification | Does Not Meet Military Specifications |
| Groove Depth | 0.04 in |
| Ring Thickness (Decimal Inch) | 0.05 in |
| Ring Thickness Tolerance | -0.002 to 0.002 in |
| Thrust Load Capacity | 4250 (Groove Safety Factor) lb; 8932 (Ring Safety Factor) lb |
| Meets Specification | No |
| Material Grade | UNS C17200 |
| Finish/Coating | Plain |
| Groove Depth (Decimal Inch) | 0.0400 |
| Groove Diameter Tolerance (Decimal Inch) | -0.0040 to 0.0050 |
| Groove Width Tolerance (Decimal Inch) | 0.000 to 0.004 |
| Free Outside Diameter Tolerance (Decimal Inch) | -0.020 to 0.025 |
| Ring Thickness Tolerance (Decimal Inch) | -0.002 to 0.002 |
