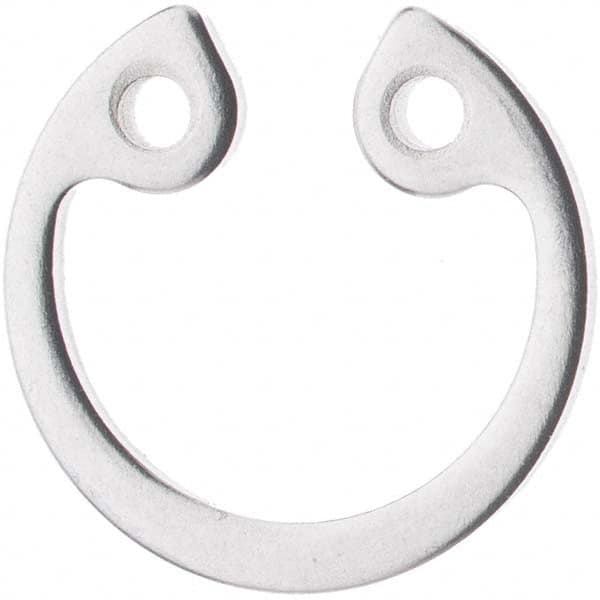

19mm Bore Diam, Stainless Steel Metric Internal Snap Retaining Ring 20.5mm Free OD, 1.1mm Groove Width x 0.5mm Groove Depth, 1mm Ring Thickness
Item #: 99616344
Brand: Rotor Clip
Model #: DHO-19SG
Product Specifications
| Ring Type | Snap |
| System of Measurement | Metric |
| Bore Diameter (mm) | 19.00 |
| Groove Diameter Tolerance | 0.000 to 0.130 mm |
| Groove Diameter (mm) | 20.00 |
| Material | Stainless Steel |
| Groove Width (mm) | 1.10 |
| Free Outside Diameter (mm) | 20.50 |
| Military Specification | Does Not Meet Military Specifications |
| Groove Depth | 0.5 mm |
| Ring Thickness (mm) | 1.00 |
| Material Grade | DIN 1.4122 |
| Finish/Coating | Passivated |
| Groove Depth (mm) | 0.50 |
| Groove Diameter Tolerance (mm) | 0.000 to 0.130 |
