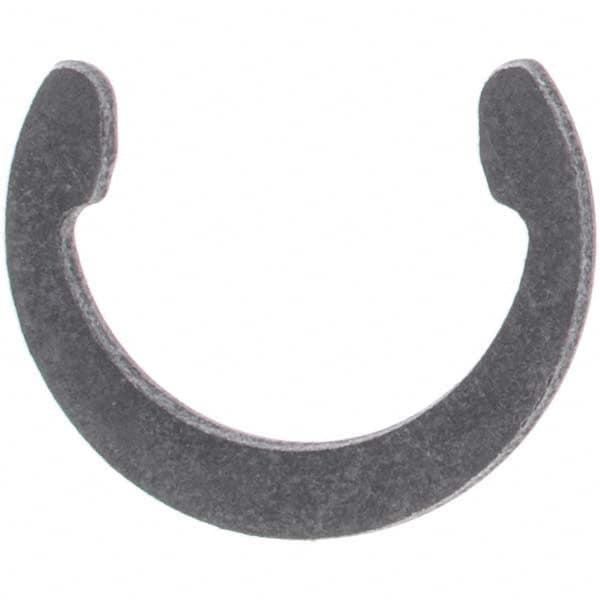

1-1/4″ Shaft Diam, 1.126″ Groove Diam, Spring Steel External C Style Retaining Ring 1.415″ Free OD, 1.11″ Free ID, 0.056″ Groove Width x 0.062″ Groove Depth, 0.05″ Ring Thickness, Grade 1060-1090
Item #: 99617540
Brand: Rotor Clip
Model #: C-125ST PA-B
Product Specifications
| Ring Type | C Style |
| System of Measurement | Inch |
| Groove Diameter | 1.126 in |
| Groove Diameter Tolerance | -0.0040 to 0.0050 in |
| Shaft Diameter (Inch) | 1-1/4 |
| Free Diameter | 1.11 in |
| Free Outside Diameter | 1.415 in |
| Groove Diameter (Decimal Inch) | 1.1260 |
| Material | Spring Steel |
| Free Outside Diameter (Decimal Inch) | 1.4150 |
| Free Diameter (Decimal Inch) | 1.1100 |
| Military Specification | Does Not Meet Military Specifications |
| Finish | Phosphate |
| Finish/Coating | Phosphate |
| Groove Width Tolerance | 0.000 to 0.004 in |
| Groove Depth | 0.062 in |
| Ring Thickness Tolerance | -0.002 to 0.002 in |
| Material Grade | 1060-1090 |
| Groove Width (Decimal Inch) | 0.056 in |
| Groove Depth (Decimal Inch) | 0.0620 |
| Ring Thickness (Decimal Inch) | 0.05 in |
| Minimum Shaft Diameter (Decimal Inch) | 1.2500 |
| Maximum Shaft Diameter (Decimal Inch) | 1.2500 |
| Groove Diameter Tolerance (Decimal Inch) | -0.0040 to 0.0050 |
| Groove Width Tolerance (Decimal Inch) | 0.000 to 0.004 |
| Free Diameter Tolerance (Decimal Inch) | -0.008 to 0.008 |
| Ring Thickness Tolerance (Decimal Inch) | -0.002 to 0.002 |
