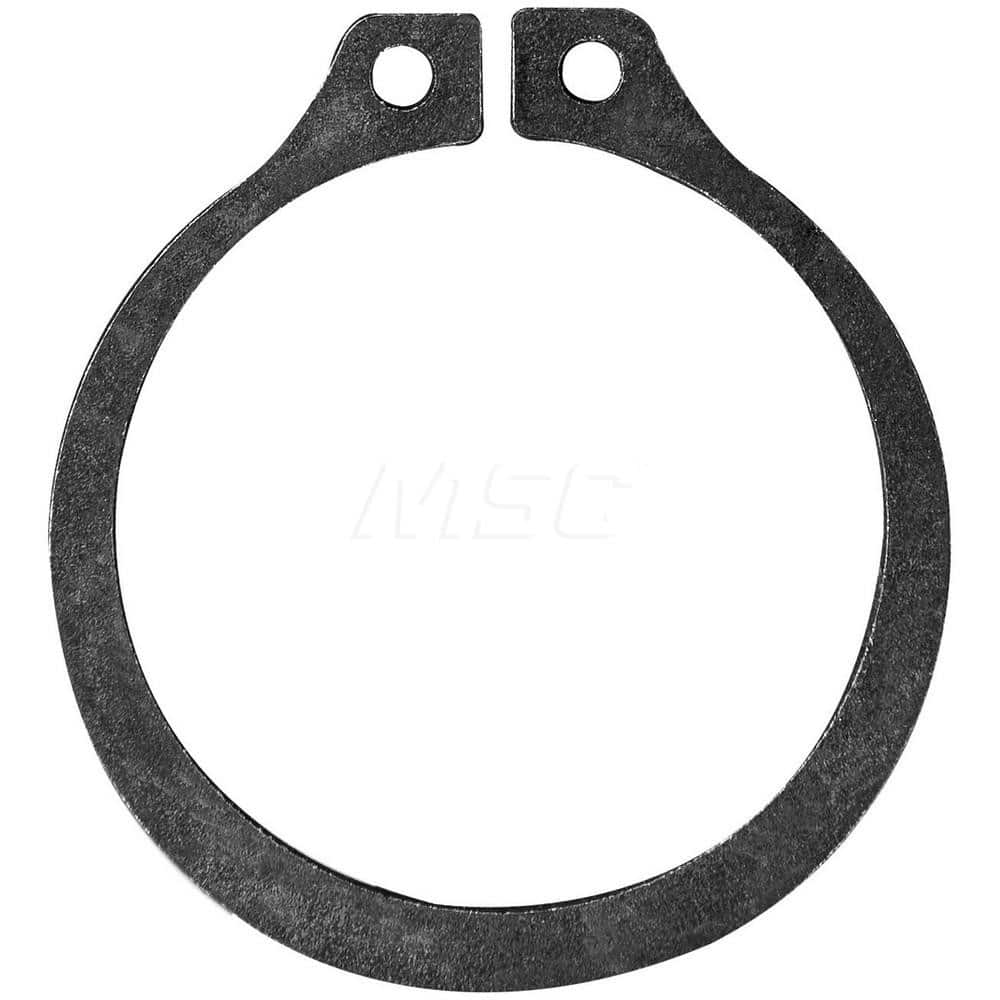

27mm Shaft Diam, 25.6mm Groove Diam, Spring Steel Metric External SH Style Retaining Ring 24.9mm Free ID, 1.3mm Groove Width x 0.7mm Groove Depth, 1.2mm Ring Thickness, Grade 1060-1090
Item #: 99622094
Brand: Rotor Clip
Model #: DSH-27ST PD
Product Specifications
| Ring Type | SH Style |
| System of Measurement | Metric |
| Shaft Diameter (mm) | 27.00 |
| Groove Diameter (mm) | 25.60 |
| Material | Spring Steel |
| Free Diameter (mm) | 24.90 |
| Military Specification | Does Not Meet Military Specifications |
| Finish | Phosphate |
| Finish/Coating | Phosphate |
| Groove Depth | 0.7 mm |
| Ring Thickness Tolerance | -0.06 mm |
| Material Grade | 1060-1090 |
| Groove Width (mm) | 1.30 |
| Groove Depth (mm) | 0.70 |
| Ring Thickness (mm) | 1.20 |
| Free Diameter Tolerance (mm) | -0.420 to 0.210 |
| Ring Thickness Tolerance (mm) | -0.06 |
