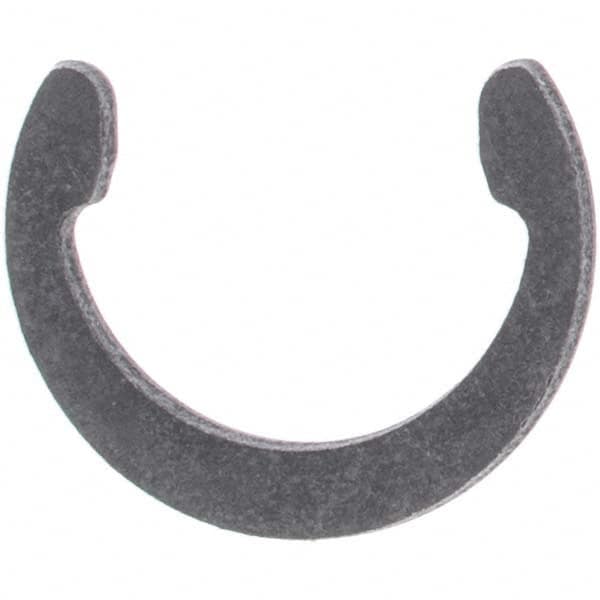

1/8″ Shaft Diam, 0.106″ Groove Diam, Spring Steel External C Style Retaining Ring 0.165″ Free OD, 0.102″ Free ID, 0.02″ Groove Width x 0.0095″ Groove Depth, 0.015″ Ring Thickness, Grade 1060-1090
Item #: 99622375
Brand: Rotor Clip
Model #: C-12ST PA
Product Specifications
| Ring Type | C Style |
| System of Measurement | Inch |
| Groove Diameter | 0.106 in |
| Groove Diameter Tolerance | -0.0015 to 0.0015 in |
| Shaft Diameter (Inch) | 1/8 |
| Free Diameter | 0.102 in |
| Free Outside Diameter | 0.165 in |
| Groove Diameter (Decimal Inch) | 0.1060 |
| Material | Spring Steel |
| Free Outside Diameter (Decimal Inch) | 0.1650 |
| Free Diameter (Decimal Inch) | 0.1020 |
| Military Specification | Does Not Meet Military Specifications |
| Finish | Phosphate |
| Inside Diameter | 0.102 in |
| Finish/Coating | Phosphate |
| Groove Width Tolerance | 0.000 to 0.002 in |
| Groove Depth | 0.0095 in |
| Ring Thickness Tolerance | -0.002 to 0.002 in |
| Material Grade | 1060-1090 |
| Groove Width (Decimal Inch) | 0.02 in |
| Groove Depth (Decimal Inch) | 0.0095 |
| Ring Thickness (Decimal Inch) | 0.015 in |
| Minimum Shaft Diameter (Decimal Inch) | 0.1250 |
| Maximum Shaft Diameter (Decimal Inch) | 0.1250 |
| Groove Diameter Tolerance (Decimal Inch) | -0.0015 to 0.0015 |
| Groove Width Tolerance (Decimal Inch) | 0.000 to 0.002 |
| Free Diameter Tolerance (Decimal Inch) | -0.004 to 0.002 |
| Ring Thickness Tolerance (Decimal Inch) | -0.002 to 0.002 |
| Ring Thickness Tol. (Plated Ring) (Decimal Inch) | -0.002 to 0.004 |
| Hardness | Rockwell 15N 86-88.5 |
