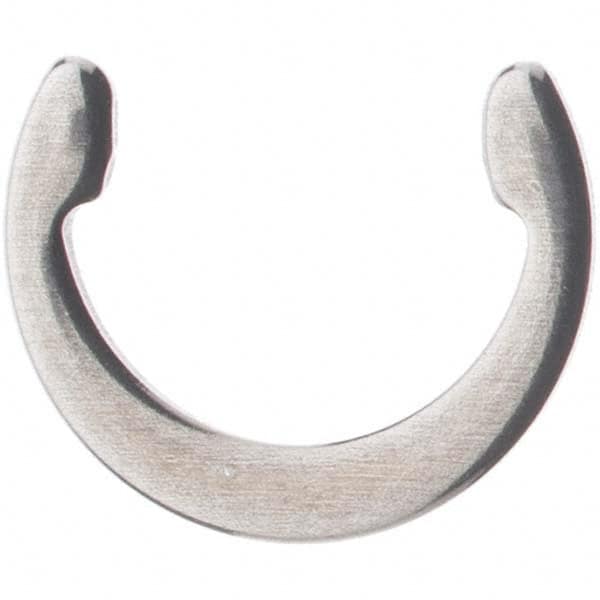

3/4″ Shaft Diam, 0.676″ Groove Diam, Stainless Steel External C Style Retaining Ring 0.845″ Free OD, 0.665″ Free ID, 0.046″ Groove Width x 0.037″ Groove Depth, 0.042″ Ring Thickness, Grade 15-7 Grade 632
Item #: 99622979
Brand: Rotor Clip
Model #: C-75SS
Product Specifications
| Ring Type | C Style |
| System of Measurement | Inch |
| Groove Diameter | 0.676 in |
| Groove Diameter Tolerance | -0.0030 to 0.0040 in |
| Shaft Diameter (Inch) | 3/4 |
| Free Diameter | 0.665 in |
| Free Outside Diameter | 0.845 in |
| Groove Diameter (Decimal Inch) | 0.6760 |
| Material | Stainless Steel |
| Free Outside Diameter (Decimal Inch) | 0.8450 |
| Free Diameter (Decimal Inch) | 0.6650 |
| Military Specification | Does Not Meet Military Specifications |
| Finish/Coating | Passivated |
| Groove Width Tolerance | 0.000 to 0.003 in |
| Groove Depth | 0.037 in |
| Ring Thickness Tolerance | -0.002 to 0.002 in |
| Material Grade | 15-7 Grade 632 |
| Groove Width (Decimal Inch) | 0.046 in |
| Groove Depth (Decimal Inch) | 0.0370 |
| Ring Thickness (Decimal Inch) | 0.042 in |
| Minimum Shaft Diameter (Decimal Inch) | 0.7500 |
| Maximum Shaft Diameter (Decimal Inch) | 0.7500 |
| Groove Diameter Tolerance (Decimal Inch) | -0.0030 to 0.0040 |
| Groove Width Tolerance (Decimal Inch) | 0.000 to 0.003 |
| Free Diameter Tolerance (Decimal Inch) | -0.007 to 0.007 |
| Ring Thickness Tolerance (Decimal Inch) | -0.002 to 0.002 |
