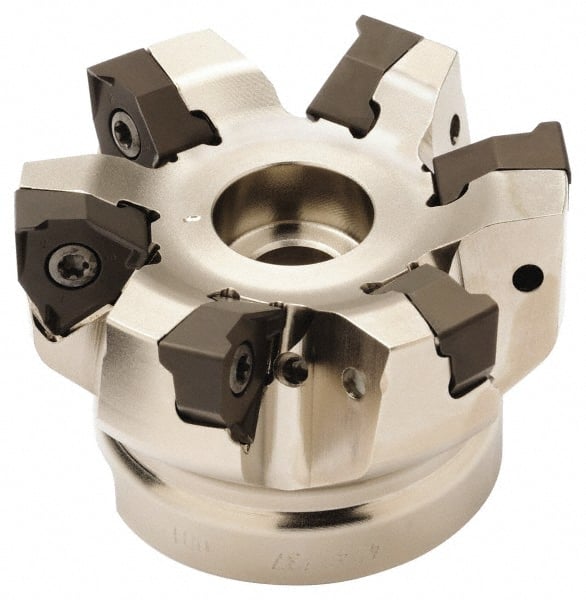

Seco - 16 Inserts, 160mm Cut Diam, 40mm Arbor Diam, 7.5mm Max Depth of Cut, Indexable Square-Shoulder Face Mill - 0/90° Lead Angle, 63mm High, XNEX 0806.. Insert Compatibility, Series Square 6
Item #: 99792269
Brand: Seco
Model #: 43531
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 160.00 |
| Cutting Diameter (Decimal Inch) | 6.3040 |
| Arbor Hole Diameter (mm) | 40.00 |
| Lead Angle | 0/90 |
| Overall Height (mm) | 63.00 |
| Insert Compatibility | XNEX 0806.. |
| Series | Square 6 |
| Through Coolant | No |
| Maximum Depth of Cut (mm) | 7.50 |
| Maximum Depth of Cut (Decimal Inch) | 0.2955 |
| Cutting Direction | Right Hand |
| Number of Cutter Inserts | 16 |
| Insert Holding Method | Screw |
| Cutter Style | R220.96 |
| Number of Flutes | 16 |
| Keyway Width (mm) | 16.40 |
| Maximum RPM | 5900 |
| Pitch | Close |
