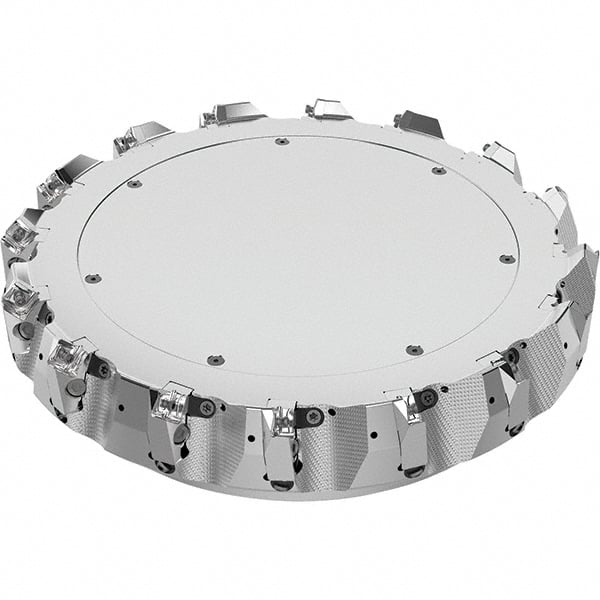

Seco - 12-1/2" Cut Diam, 2-1/2" Arbor Hole, 0.236" Max Depth of Cut, 48° Indexable Chamfer & Angle Face Mill - 16 Inserts, SN.. Insert, Right Hand Cut, 16 Flutes, Through Coolant, Series R220.54
Item #: 99877250
Brand: Seco
Model #: 03213794
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (Inch) | 12-1/2 |
| Arbor Hole Diameter (Inch) | 2-1/2 |
| Lead Angle | 48 |
| Overall Height (mm) | 80.00 |
| Insert Compatibility | SN.. |
| Series | R220.54 |
| Through Coolant | Yes |
| Maximum Depth of Cut (Decimal Inch) | 0.2360 |
| Number of Cutter Inserts | 16 |
| Insert Holding Method | Screw |
| Cutter Style | R220.54 |
| Number of Flutes | 16 |
| Cutting Rake Angle | -6 |
| Hub Diameter (Decimal Inch) | 8.8580 |
| Keyway Width (Inch) | 1 |
| Maximum Body Diameter (Decimal Inch) | 12.8350 |
| Maximum RPM | 3400 |
| Cutting Direction | Right Hand |
| Pitch | Normal |
| Overall Diameter (Decimal Inch) | 12.8350 |
| Complete Insert Compatibility | SN..14..ANTR |
| Toolholder Material | Steel |
