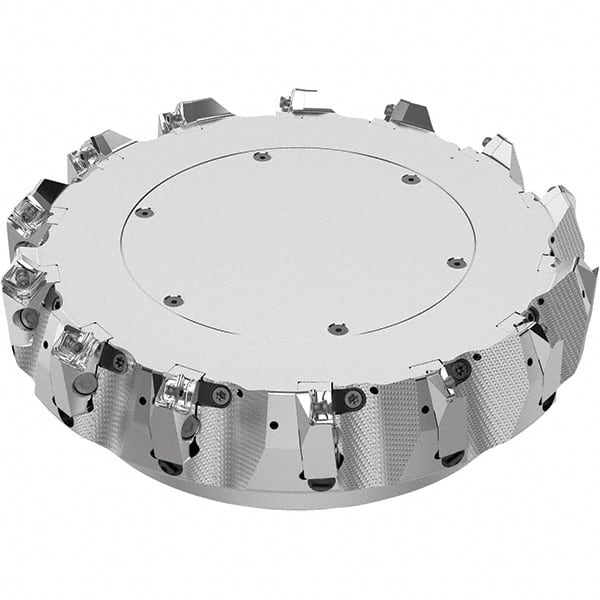

Seco - 10" Cut Diam, 2-1/2" Arbor Hole, 0.236" Max Depth of Cut, 48° Indexable Chamfer & Angle Face Mill - 14 Inserts, SN.. Insert, Right Hand Cut, 14 Flutes, Through Coolant, Series R220.54
Item #: 99879488
Brand: Seco
Model #: 03213793
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (Inch) | 10 |
| Cutting Diameter (Decimal Inch) | 10.0000 |
| Arbor Hole Diameter (Inch) | 2-1/2 |
| Lead Angle | 48 |
| Overall Height (mm) | 80.00 |
| Insert Compatibility | SN.. |
| Series | R220.54 |
| Through Coolant | Yes |
| Maximum Depth of Cut (Decimal Inch) | 0.2360 |
| Number of Cutter Inserts | 14 |
| Insert Holding Method | Screw |
| Cutter Style | R220.54 |
| Number of Flutes | 14 |
| Cutting Rake Angle | -6 |
| Hub Diameter (Decimal Inch) | 5.1180 |
| Keyway Width (Inch) | 1 |
| Maximum Body Diameter (Decimal Inch) | 10.2760 |
| Maximum RPM | 3800 |
| Cutting Direction | Right Hand |
| Pitch | Normal |
| Overall Diameter (Decimal Inch) | 10.2760 |
| Complete Insert Compatibility | SN..14..ANTR |
| Toolholder Material | Steel |
