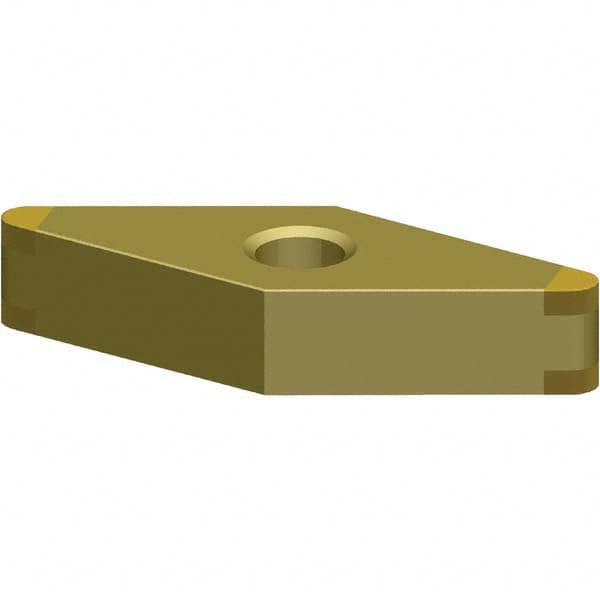

VNGA333S0525DMT KBH20B PCBN Turning Insert Uncoated, Neutral, 3/8″ Inscribed Circle, 3/64″ Corner Radius, Diamond
Item #: 99982159
Brand: Kennametal
Model #: 6630946
Product Specifications
| Insert Style | VNGA |
| Insert Shape Code | V |
| Insert Size Code | 333 |
| Insert Shape | Diamond |
| Clearance Code | N |
| Tolerance Code | G |
| Insert Material | Polycrystalline Cubic Boron Nitride |
| Manufacturer Grade | KBH20B |
| Hole Diameter (Decimal Inch) | 0.1500 |
| Inscribed Circle (Inch) | 3/8 |
| Insert Hand | Neutral |
| Insert Thickness (Decimal Inch) | 0.1883 |
| Corner Radius (Inch) | 3/64 |
| Iso Code | VNGA160412S01225DMT |
| Manufacturers Catalog Number | VNGA333S0525DMT |
| Cutting Direction | Neutral |
| Chip Breaker | A |
| Coating/Finish | Uncoated |
