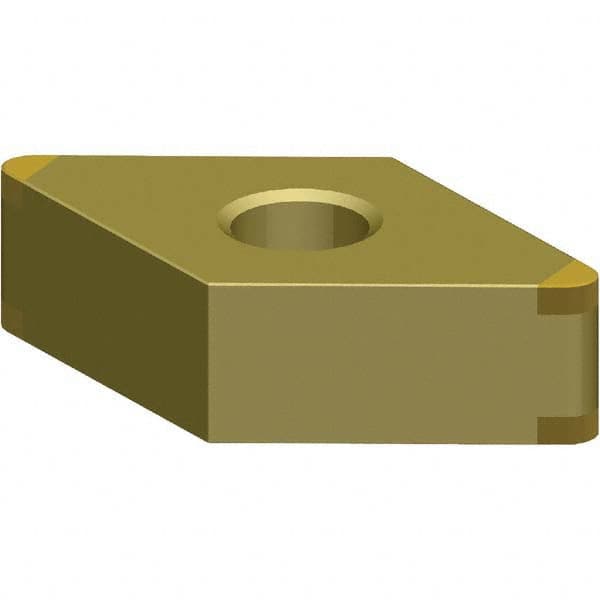

DNGA431S0525DMT KBH10B PCBN Turning Insert Uncoated, Neutral, 1/2″ Inscribed Circle, 1/64″ Corner Radius, Diamond
Item #: 99982365
Brand: Kennametal
Model #: 6630920
Product Specifications
| Insert Style | DNGA |
| Insert Shape Code | D |
| Insert Size Code | 431 |
| Insert Shape | Diamond |
| Clearance Code | N |
| Tolerance Code | G |
| Insert Material | Polycrystalline Cubic Boron Nitride |
| Manufacturer Grade | KBH10B |
| Hole Diameter (Decimal Inch) | 0.2030 |
| Inscribed Circle (Inch) | 1/2 |
| Insert Hand | Neutral |
| Insert Thickness (Decimal Inch) | 0.1883 |
| Corner Radius (Inch) | 1/64 |
| Iso Code | DNGA150404S01225DMT |
| Manufacturers Catalog Number | DNGA431S0525DMT |
| Cutting Direction | Neutral |
| Chip Breaker | A |
| Coating/Finish | Uncoated |
