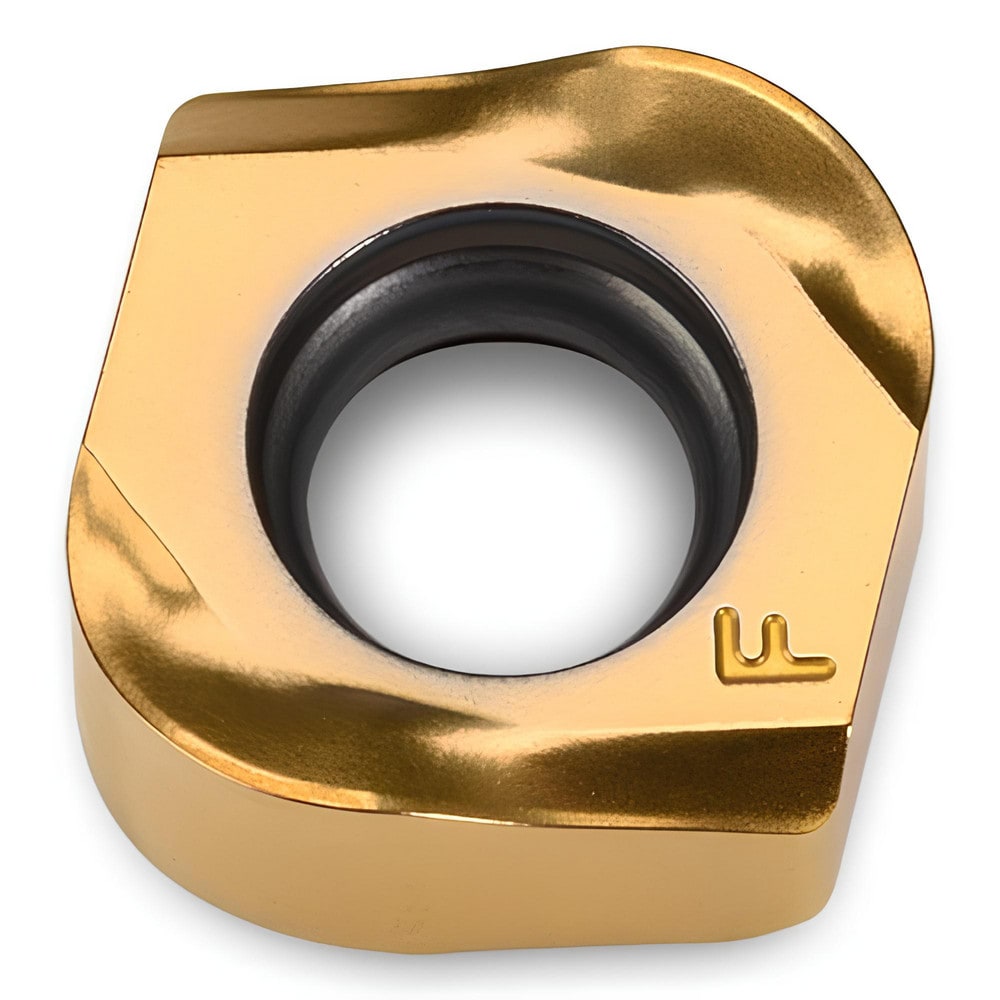

Brand: Ingersoll Cutting Tools / Part #: 6312391
Item #: 19834050
Brand: Ingersoll Cutting Tools
Model #: 6312391
Product Specifications
| Insert Style | UNHU |
| Insert Size Code | 090432 |
| Insert Material | Carbide |
| Manufacturer Grade | IN2505 |
| Thickness (Inch) | 3/16 |
| Inscribed Circle (Decimal Inch) | 0.3380 |
| Corner Radius (Inch) | 1/8 |
| Insert Hand | Right Hand |
| Series | UNHU |
| Coating Process | PVD |
| Maximum Depth of Cut (Decimal Inch) | 0.0590 |
| Number Of Cutting Edges | 4 |
| Insert Shape | Parallelogram |
| Rake | Negative |
| Primary Workpiece Material | Hard Material; Cast Iron; Steel |
| Primary Workpiece Material Code | P; H; K |
| Ansi Code | UNHU090432R-HF |
| Rake Angle | 0.000 |
| Manufacturers Catalog Number | UNHU090432R-HF IN2505 |
| Cutter Series Compatibility | 1TJ1F; TJ.F |
| Chip Breaker | HF |
| Cutting Direction | Right Hand |
| Shape | Parallelogram |
| Length of Cut (mm) | 1.5000 |
| Insert Holding Method | Screw |
| Coating Classification | PVD |
| Single or Double Sided Insert | Double |
| Coating/Finish | TiN; TiAlN |
| Multi-Use Tool | No |
