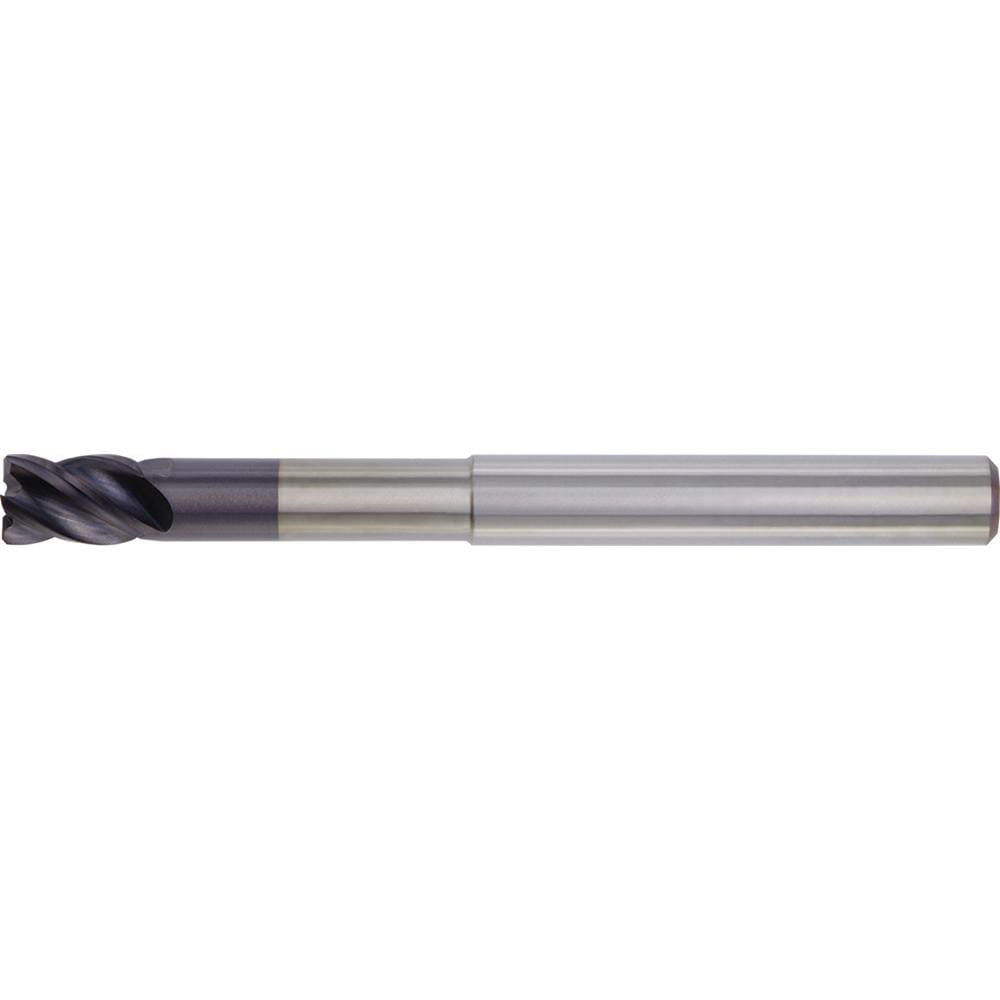

Brand: Widia / Part #: 2837125
Item #: 34047027
Brand: Widia
Model #: 2837125
Product Specifications
| Mill Diameter (Inch) | 1 |
| Chamfer Width (Decimal Inch) | 0.0200 |
| Coating/Finish | TiAlN |
| End Mill Material | Solid Carbide |
| Number Of Flutes | 4 |
| Single Or Double End | Single |
| Overall Length (Inch) | 4-1/2 |
| Overall Length (mm) | 4.50 |
| Length of Cut (Inch) | 1-1/8 |
| Cutting Direction | Right Hand |
| Coolant Through | No |
| Mill Diameter (Decimal Inch) | 1.0000 |
| Flute Direction | Right Hand |
| Overall Length (Decimal Inch) | 4.5000 |
| Chipbreaker | No |
| End Type | Single |
| Chamfer Angle | 45 |
| Length Of Cut (Decimal Inch - 4 Decimals) | 1.1250 |
| Length Type | Regular |
| Flute Type | Variable |
| Extended Reach | Yes |
| Shank Type | Weldon Flat |
| Centercutting | Yes |
| Material Removal Type | Roughing & Finishing |
| Shank Diameter (Decimal Inch) | 1.0000 |
| Shank Diameter (Inch) | 1 |
| Neck Diameter (Decimal Inch) | 0.9400 |
| Reach Length (Decimal Inch) | 2.2500 |
| Reach Length (Inch) | 2-1/4 |
| Minimum Helix Angle | 38.00 |
| Maximum Helix Angle | 38.00 |
| Primary Workpiece Material | Hard Material; Cast Iron; High Temperature Alloy; Steel |
| Primary Workpiece Material Code | P; S; H; K |
| Secondary Workpiece Material | Stainless Steel |
| Secondary Workpiece Material Code | M |
| Material Grade | TiAlN-LW |
| Series | 4VN5 |
