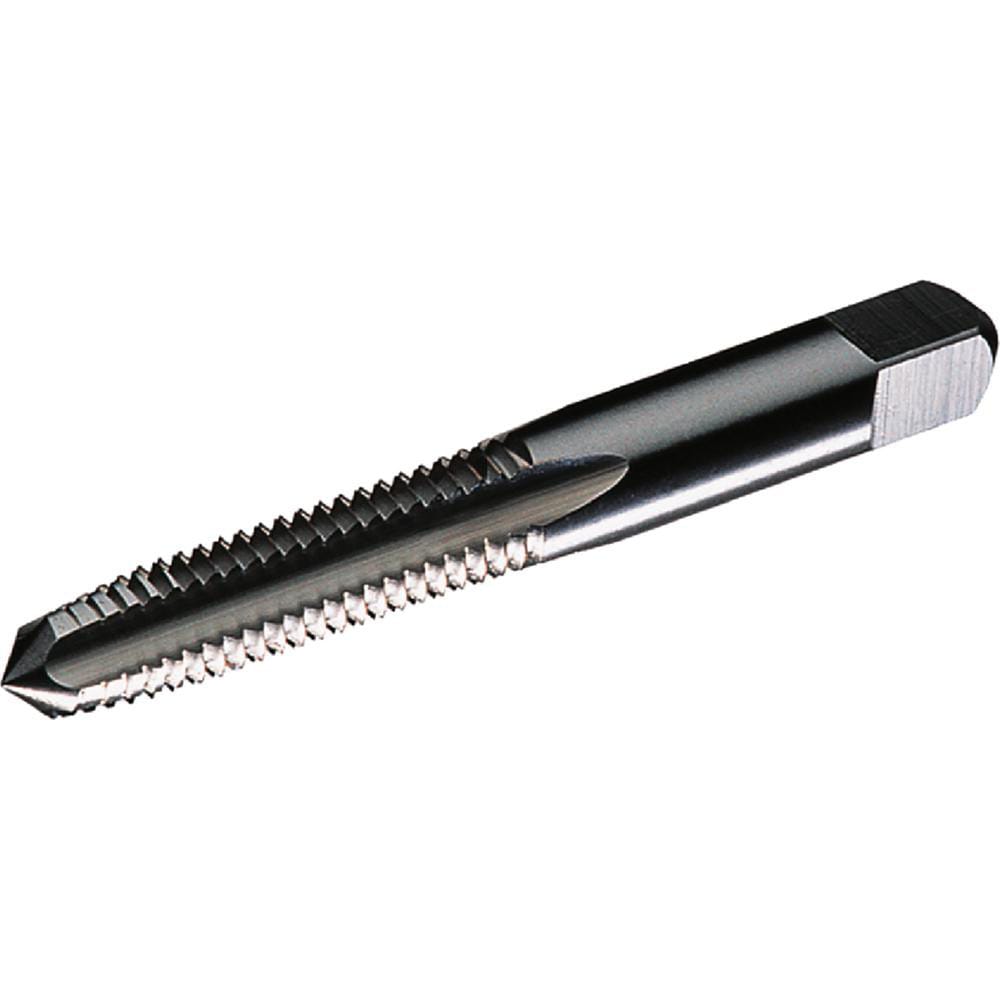

Brand: Widia / Part #: 2746701
Item #: 74789231
Brand: Widia
Model #: 2746701
Product Specifications
| Tap Type | Machine |
| Thread Size (mm) | M8x1.25 |
| Thread Limit | D5 |
| Class Of Fit | 6H |
| Number Of Flutes | 4 |
| Chamfer | Bottoming |
| Material | High Speed Steel |
| Coating/Finish | TiCN |
| Threads per Inch | 20 |
| Thread Direction | Right Hand |
| Coolant Through | No |
| Thread Standard | Metric |
| Overall Length (mm) | 69.0600 |
| Thread Pitch (mm) | 1.25 |
| Thread Length (mm) | 28.58 |
| Thread Depth (mm) | 28.58 |
| Application | Metal |
| Shank Diameter (mm) | 8.0800 |
| Square Length (mm) | 9.53 |
| Series | 5353 |
| Shank Length (mm) | 0.000 |
| Shank Length (Decimal Inch) | 1.5937 |
