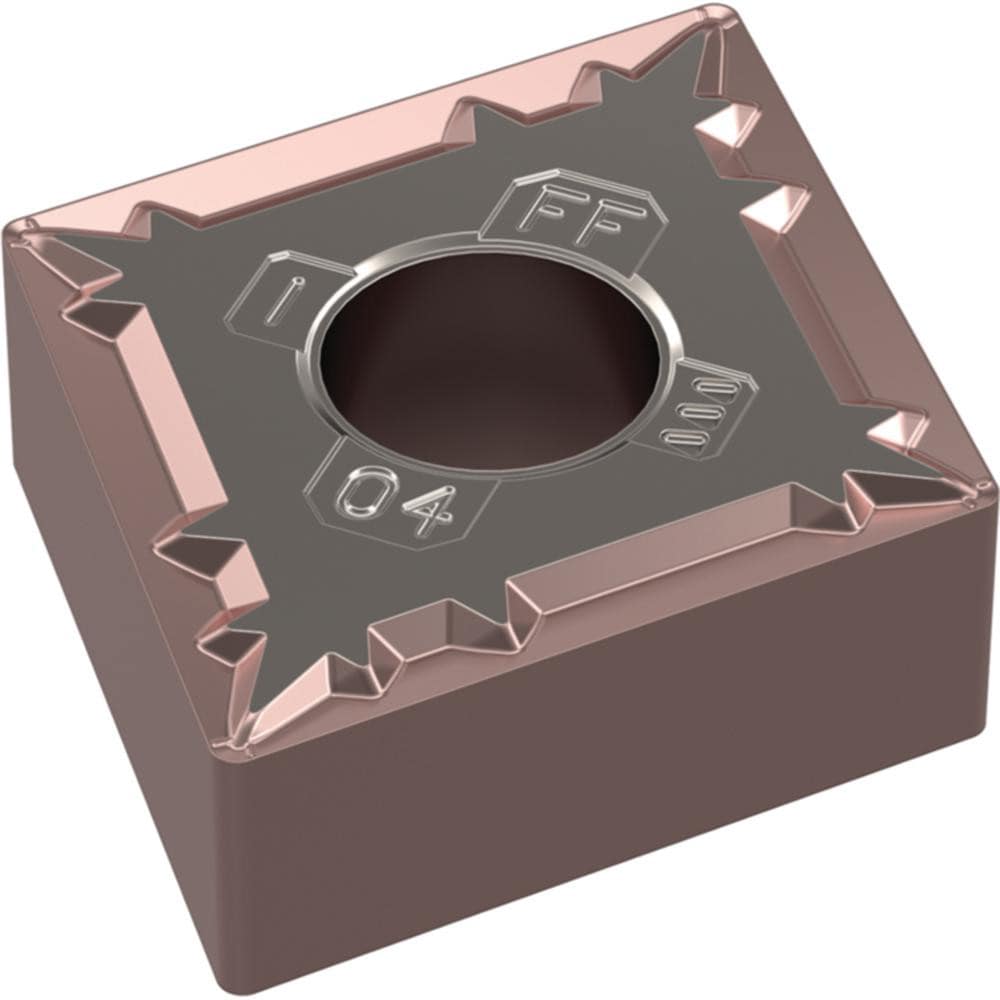

Brand: Widia / Part #: 4171025

Brand: Widia / Part #: 4171025


Item #: 18736199
Brand: Widia
Model #: 4171025

Product Specifications

Insert Style CNMG
Insert Shape Code C
Insert Size Code 431
Insert Shape Diamond
Coating/Finish TiCN; TiN; ZrCN; Al2O3
Manufacturer Grade WP15CT
Corner Radius (Decimal Inch) 0.0157
Insert Material Carbide
Hole Diameter (Decimal Inch) 0.2031
Maximum Depth of Cut (Decimal Inch) 0.2540
Inscribed Circle (Decimal Inch) 0.5000
Insert Holding Method Clamp
Insert Hand Neutral
Insert Thickness (Decimal Inch) 0.1875
Clearance Code N
Tolerance Code M
Included Angle 80.00
Relief Angle 0.000
Series CNMG
Coating Process MTCVD
Rake Negative
Wiper Edge No
Insert Length (Decimal Inch) 0.5079
Number Of Cutting Edges 8
Primary Workpiece Material Steel
Primary Workpiece Material Code P
Secondary Workpiece Material Cast Iron
Secondary Workpiece Material Code K
Ansi Code CNMG431FF
Iso Code CNMG120404FF
Manufacturers Catalog Number CNMG431FF
Cutting Direction Neutral
Coating Classification Multi-Layered CVD
Chip Breaker FF
Cutting Edge Style Sharp
Style CNMG
Width (Decimal Inch - 4 Decimals) 0.5000
Multi-Use Tool Yes
Full Radius No
Multi-Use Application External Turning; Internal Turning
$ 7.14
