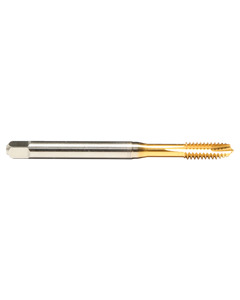

M8-ISO2/6H REK.1B TIN Tap
Item #: ER45B0201400008
Brand: EMUGE-FRANKEN
Model #: B0201400.0080
| Product Specifications | |
|---|---|
| Thread Standard | Metric |
| Standard | | DIN | |
| Thread Size | M8 × 1.25 |
| Applicable Material | | Steel | Cast Iron | Aluminum / Non-Ferrous Materials | |
| Thread Diameter Size (TDZ) | M8 |
| Application | Through Hole |
| Thread Pitch (TP) | 1.25 mm |
| Connection Diameter Machine Side (DCONMS) | 8 mm |
| Thread Tolerance Class (TCTR) | | 6H | |
| Thread Cutting Part Length (THL) | 20 mm |
| Overall Length (OAL) | 90 mm |
| End Shape | Spiral Point|Chamfer |
| Chamfer | 4P-5P |
| Cutting Direction (HAND) | Right Hand |
| Coating | TiN |
| Coolant Supply Property (CSP) | External |
| Cutting Edge Material | HSSCo |
| Measurement Type | Metric |
