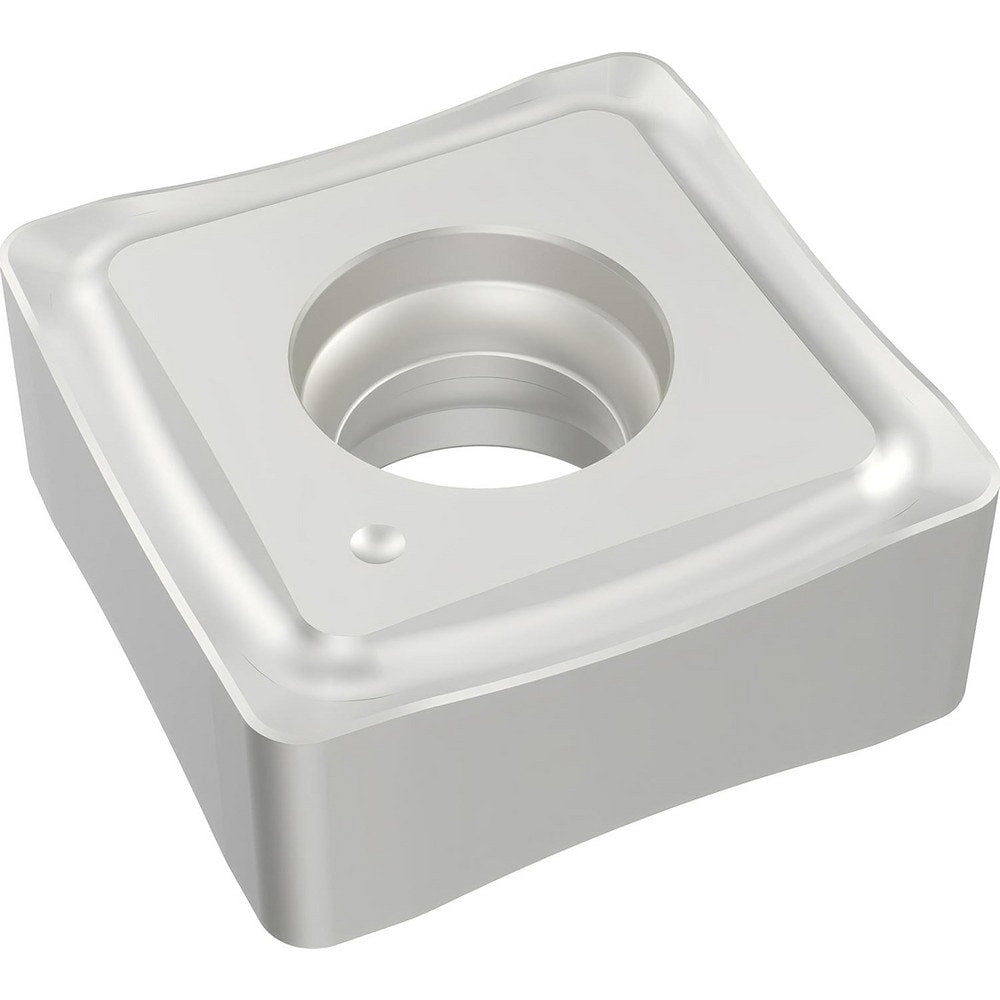

Brand: Seco / Part #: 10092591
Item #: 40064834
Brand: Seco
Model #: 10092591
Product Specifications
| Insert Style | SNMU |
| Insert Size Code | 160612 |
| Insert Size | 16 |
| Insert Material | Carbide |
| Manufacturer Grade | MP1501 |
| Inscribed Circle (Decimal Inch) | 0.6299 |
| Corner Radius (Inch) | 3/64 |
| Insert Hand | Neutral |
| Relief Angle | 0.000 |
| Series | SNMU |
| Coating Process | CVD |
| Maximum Depth of Cut (Decimal Inch) | 0.5118 |
| Number Of Cutting Edges | 8 |
| Cutting Edge Effective Length (Decimal Inch) | 0.5118 |
| Insert Shape | Square |
| Rake | Negative |
| Primary Workpiece Material | Hard Material; Cast Iron; Steel |
| Primary Workpiece Material Code | P; H; K |
| Ansi Code | SNMU160612TN-M18 |
| Iso Code | SNMU160612TN-M18 |
| Cutting Edge Style | Chamfered & Honed |
| Manufacturers Catalog Number | SNMU160612TN-M18 |
| Cutter Series Compatibility | R220.88 |
| Chip Breaker | M18 |
| Cutting Direction | Neutral |
| Shape | Square |
| Insert Holding Method | Screw |
| Coating Classification | CVD |
| Single or Double Sided Insert | Double |
| Coating/Finish | TiCN; Al2O3 |
| Included Angle Degree | 90 |
| Width (Decimal Inch - 4 Decimals) | 0.6299 |
| Thickness (Decimal Inch - 4 Decimals) | 0.2512 |
| Multi-Use Tool | Yes |
| Length (Decimal Inch - 4 Decimals) | 0.6299 |
