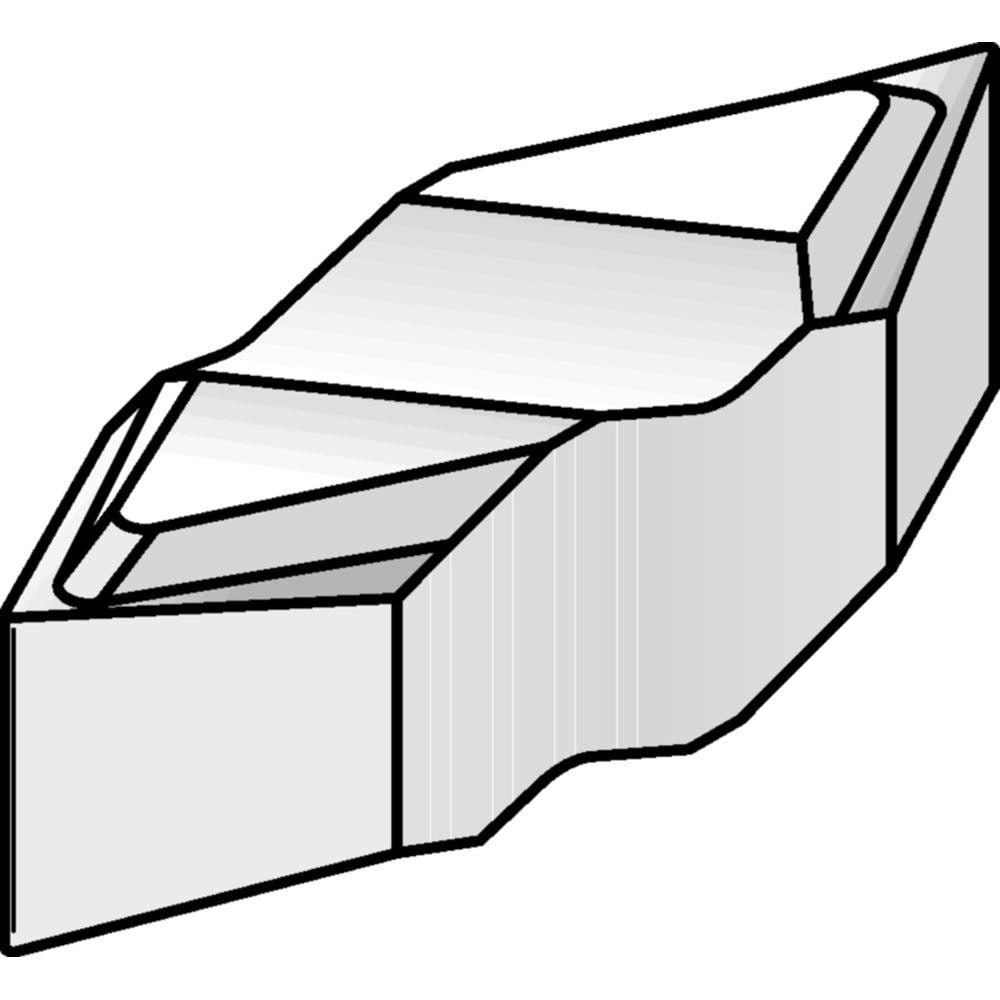

Brand: Widia / Part #: 3811640
Item #: 97263131
Brand: Widia
Model #: 3811640
Product Specifications
| Insert Style | NTU |
| Insert Material | Carbide |
| Manufacturer Grade | TN6025 |
| Thread Type | External |
| Material Grade | TN6025 |
| Thread Standard | UN |
| Insert Hand | Right Hand |
| External Pitch | 1.25-6.25 |
| Included Angle | 60.00 |
| Chipbreaker | K |
| Series | NTU |
| Coating Process | PVD |
| Corner Radius (Decimal Inch) | 0.0045 |
| Corner Radius (mm) | 0.11 |
| Ansi Code | NTU4R |
| Iso Code | NTU4R |
| Maximum Corner Radius (Decimal Inch) | 0.0045 |
| Maximum Depth of Cut (Decimal Inch) | 0.2165 |
| Coating Classification | PVD |
| Shape | Irregular |
| Insert Holding Method | Clamp |
| Insert Size | 4U |
| Thickness (Decimal Inch - 4 Decimals) | 0.2700 |
| Finish Coating | AlTiN |
| Coolant Through | No |
| Hole Diameter (Mm) ( - 0 Decimals) | 0.0000 |
