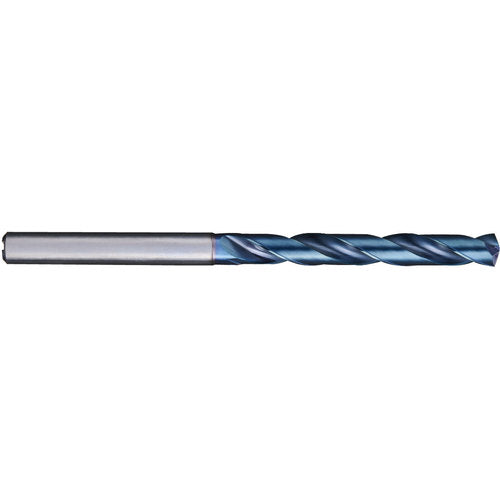

4 mm Dia. × 6 mm Shank × 36 mm Flute Length × 74 mm OAL, 5XD, 140°, Aqua Revo D, 2 Flute, Internal, Solid Carbide Drill
Item #: AC860779213
Brand: Nachi America Inc
Model #: 0779213
| Product Specifications | |
|---|---|
| Drill Bit Size / Cutting Diameter (DC) | 4 mm |
| Cutting Edge Material | Carbide |
| Decimal Equivalent | 0.1575″ |
| Tool Type | Drill |
| Drill Bit Size / Cutting Diameter (DC) - Metric | 4 mm |
| Measurement Type | Metric |
| Length Group | 5xD |
| Series/List # | L9874 |
| Coating | Aqua Revo D |
| Usable Length (LU) | 36 mm |
| Applicable Material | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium |
| Length Chip Flute (LCF) | 36 mm |
| Connection Diameter Machine Side (DCONMS) | 6 mm |
| Overall Length (OAL) | 74 mm |
| Coolant Supply Property (CSP) | Coolant Thru |
| Flute Count (NOF) | 2 |
| Point Angle (SIG) | 140 Degrees |
| Cutting Direction (HAND) | Right Hand |
| Flute Helix Angle (FHA) | 24-30 Degrees |
