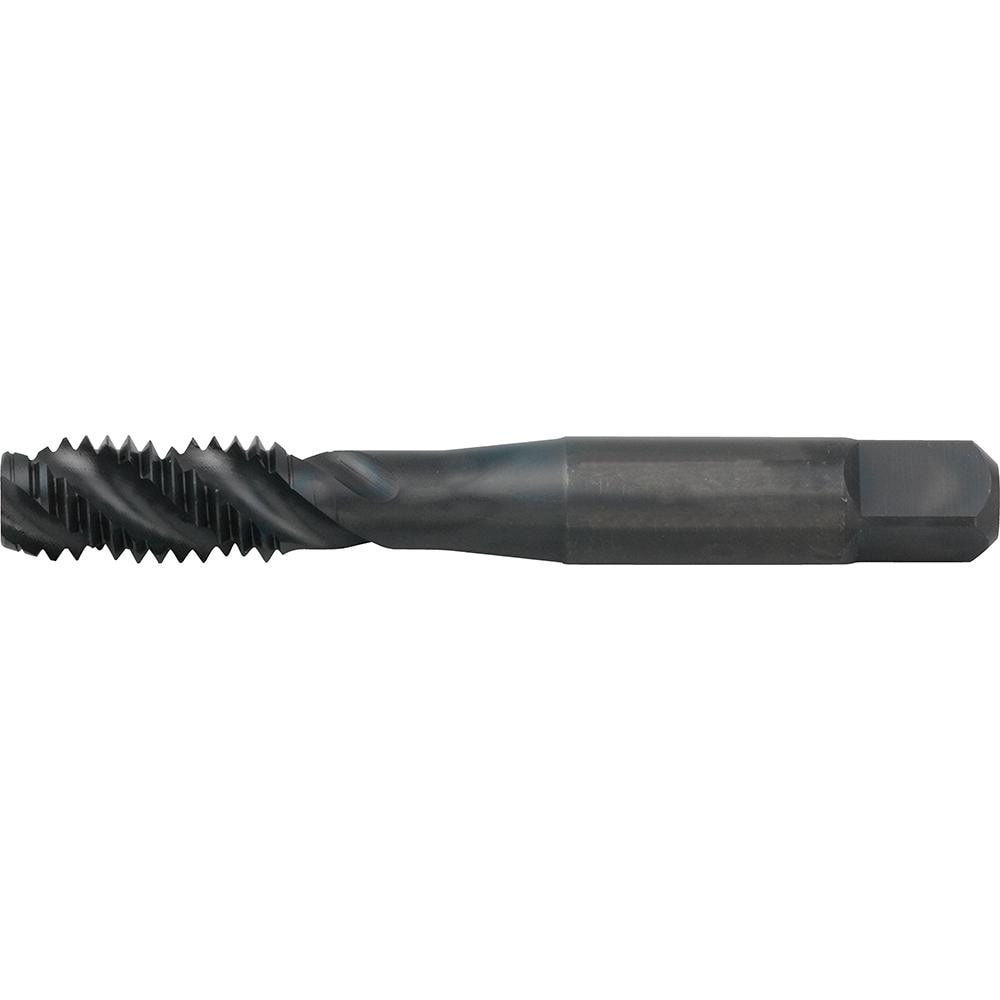

Brand: Widia / Part #: 5390234
Item #: 97642375
Brand: Widia
Model #: 5390234
Product Specifications
| Thread Size (Inch) | 1/4-28 |
| Chamfer | Bottoming |
| Thread Limit | H5 |
| Class Of Fit | 2B |
| Number Of Flutes | 3 |
| Material | High Speed Steel |
| Threads per Inch | 28 |
| Thread Direction | Right Hand |
| Flute Direction | Right Hand |
| Coating/Finish | Oxide |
| Coolant Through | No |
| Thread Length (Decimal Inch) | 0.6200 |
| Overall Length (Decimal Inch) | 2.4900 |
| Thread Depth (Decimal Inch) | 1.0000 |
| Thread Pitch (Decimal Inch) | 0.0357 |
| Thread Standard | UNF |
| Material Grade | WP49EG |
| Shank Diameter (Decimal Inch) | 0.2550 |
| Square Size (Decimal Inch) | 0.1890 |
| Material Application | Stainless Steel; Cast Iron; Steel |
| Series | VTSFT |
