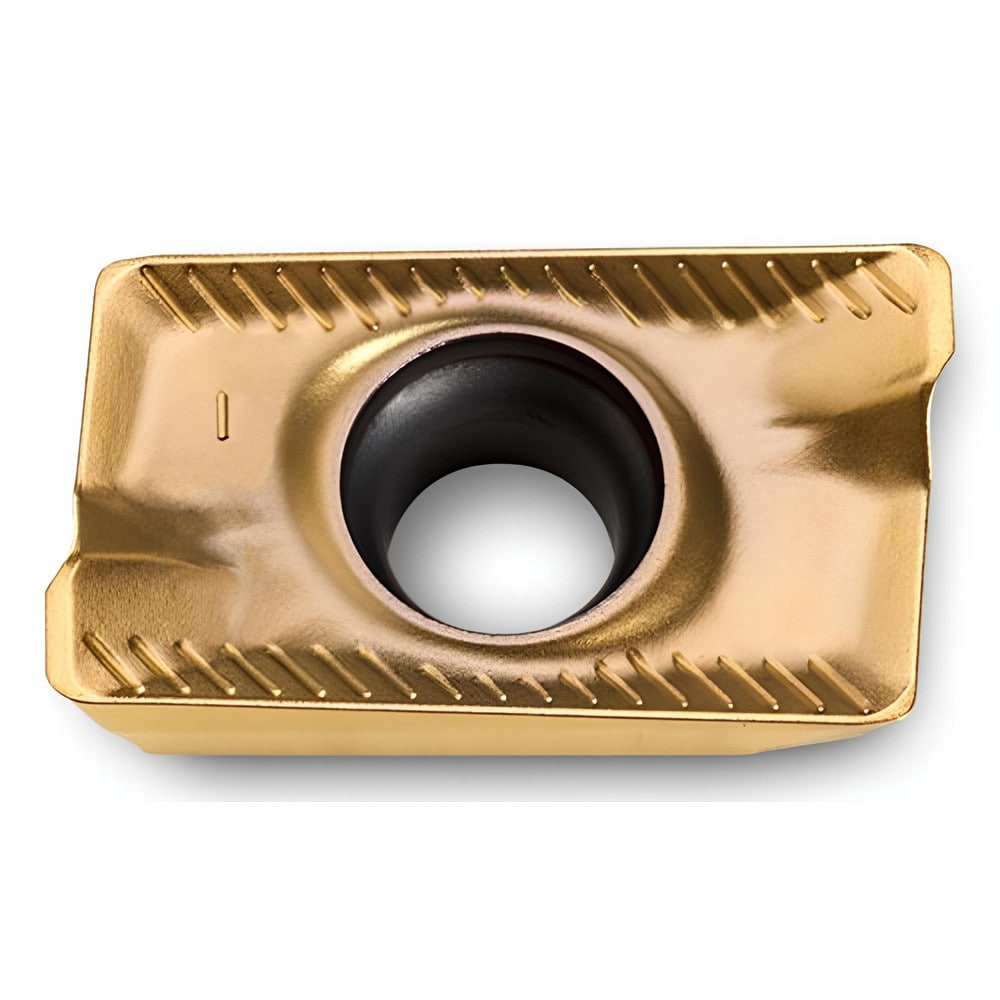

Brand: Ingersoll Cutting Tools / Part #: 6196940
Item #: 14245930
Brand: Ingersoll Cutting Tools
Model #: 6196940
Product Specifications
| Insert Style | APKT |
| Insert Size Code | 160408 |
| Insert Material | Carbide |
| Manufacturer Grade | IN2510 |
| Inscribed Circle (Inch) | 3/8 |
| Corner Radius (Inch) | 1/32 |
| Insert Hand | Right Hand |
| Series | APKT |
| Coating Process | PVD |
| Maximum Depth of Cut (Decimal Inch) | 0.6000 |
| Number Of Cutting Edges | 2 |
| Insert Shape | Parallelogram |
| Rake | Positive |
| Primary Workpiece Material | Cast Iron |
| Primary Workpiece Material Code | K |
| Ansi Code | APKT160408R-HR I |
| Rake Angle | 11.000 |
| Manufacturers Catalog Number | APKT160408R-HR I IN2510 |
| Cutter Series Compatibility | 12J1B; 22J3B; 12N1B; 12S1B; 2J1B; 22J5B |
| Chip Breaker | HR |
| Cutting Direction | Right Hand |
| Shape | Parallelogram |
| Length of Cut (mm) | 15.2400 |
| Insert Holding Method | Screw |
| Coating Classification | PVD |
| Single or Double Sided Insert | Single |
| Coating/Finish | TiN; TiAlN |
| Included Angle Degree | 85 |
| Width (Decimal Inch - 4 Decimals) | 0.3750 |
| Thickness (Decimal Inch - 4 Decimals) | 0.2070 |
| Multi-Use Tool | Yes |
| Length (Decimal Inch - 4 Decimals) | 0.6790 |
