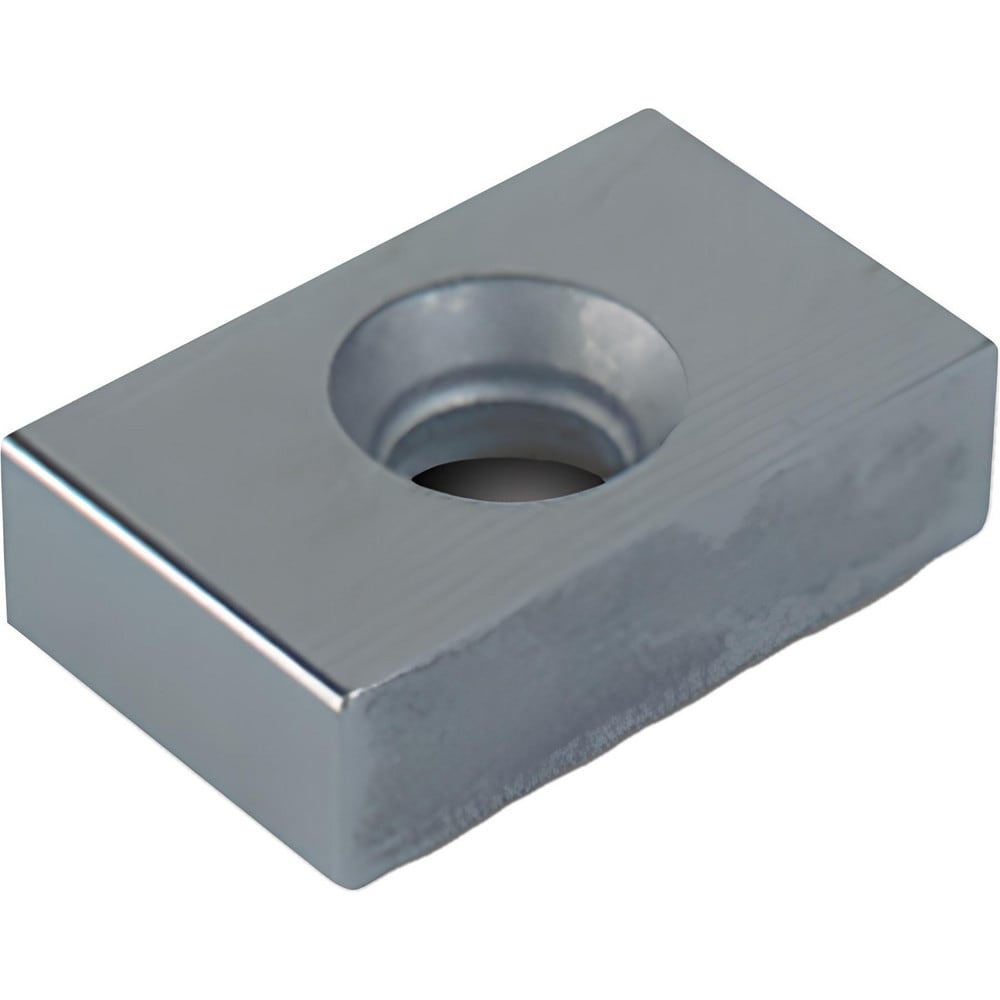

Brand: Ingersoll Cutting Tools / Part #: 5800468
Item #: 51003705
Brand: Ingersoll Cutting Tools
Model #: 5800468
Product Specifications
| Insert Style | LNE |
| Insert Size Code | 424 |
| Insert Material | Carbide |
| Manufacturer Grade | IN40P |
| Length (Inch) | 1/2 |
| Thickness (Inch) | 1/4 |
| Inscribed Circle (Inch) | 5/8 |
| Corner Radius (Decimal Inch) | 0.0600 |
| Insert Hand | Neutral |
| Series | LNE |
| Coating Process | Uncoated |
| Maximum Depth of Cut (Decimal Inch) | 0.5000 |
| Number Of Cutting Edges | 8 |
| Insert Shape | Rectangle |
| Rake | Negative |
| Primary Workpiece Material | Steel |
| Primary Workpiece Material Code | P |
| Ansi Code | LNE424-04 A |
| Rake Angle | 0.000 |
| Manufacturers Catalog Number | LNE424-04 A IN40P |
| Chip Breaker | None |
| Cutting Direction | Neutral |
| Shape | Rectangle |
| Length of Cut (mm) | 12.7000 |
| Insert Holding Method | Screw |
| Coating Classification | Uncoated |
| Single or Double Sided Insert | Double |
| Coating/Finish | Uncoated |
| Included Angle Degree | 90 |
| Width (Decimal Inch - 4 Decimals) | 0.6250 |
| Multi-Use Tool | No |
