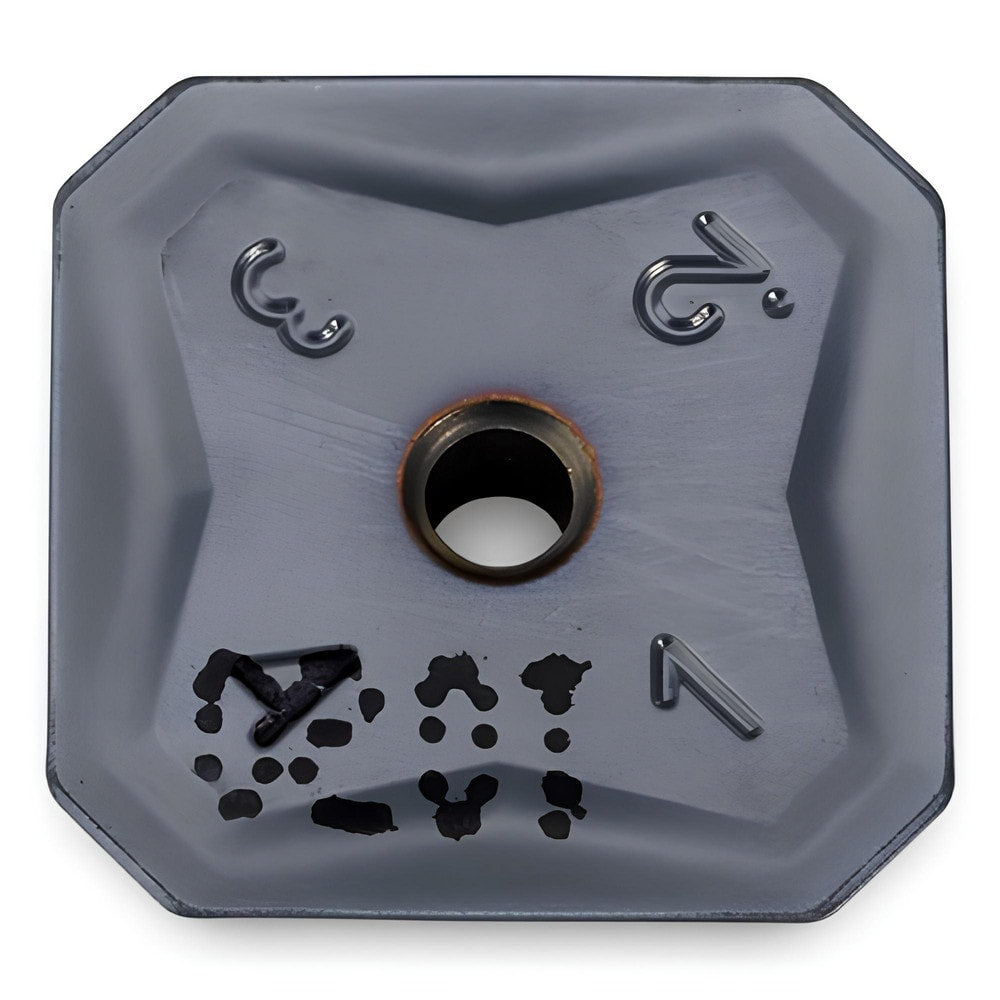

Brand: Ingersoll Cutting Tools / Part #: 5840297
Item #: 13711569
Brand: Ingersoll Cutting Tools
Model #: 5840297
Product Specifications
| Insert Style | SEKR |
| Insert Size Code | 1203 |
| Insert Material | Carbide |
| Manufacturer Grade | IN2040 |
| Length (Inch) | 1/2 |
| Thickness (Inch) | 1/8 |
| Inscribed Circle (Inch) | 1/2 |
| Corner Radius (Decimal Inch) | 0.0300 |
| Insert Hand | Neutral |
| Series | SEKR |
| Coating Process | PVD |
| Maximum Depth of Cut (Decimal Inch) | 0.2700 |
| Number Of Cutting Edges | 4 |
| Insert Shape | Square |
| Rake | Positive |
| Primary Workpiece Material | Steel |
| Primary Workpiece Material Code | P |
| Ansi Code | SEKR1203AFN |
| Rake Angle | 20.000 |
| Manufacturers Catalog Number | SEKR1203AFN IN2040 |
| Chip Breaker | None |
| Cutting Direction | Neutral |
| Shape | Square |
| Length of Cut (mm) | 6.8600 |
| Insert Holding Method | Screw |
| Coating Classification | PVD |
| Single or Double Sided Insert | Single |
| Coating/Finish | TiAlN |
| Included Angle Degree | 90 |
| Width (Decimal Inch - 4 Decimals) | 0.5000 |
| Multi-Use Tool | Yes |
