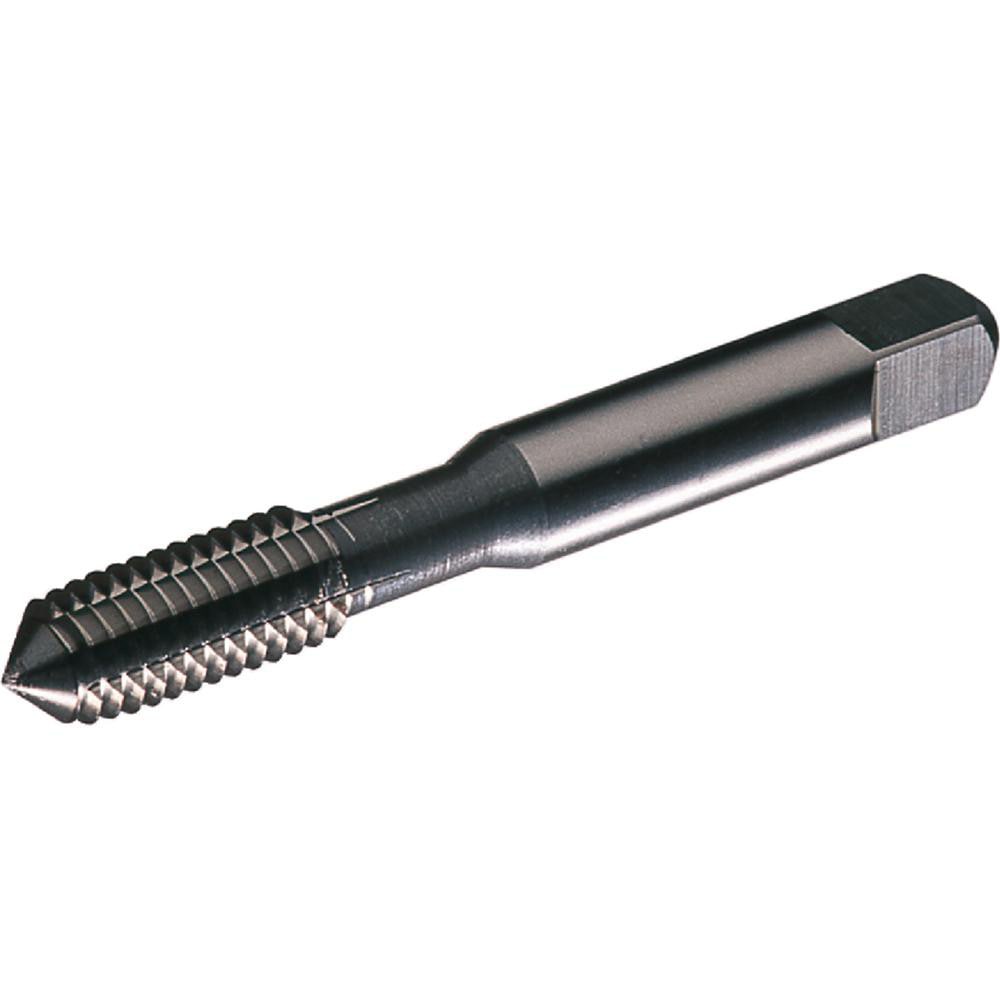

Brand: Widia / Part #: 2746231
Item #: 99330532
Brand: Widia
Model #: 2746231
Product Specifications
| Thread Size (mm) | M6x1 |
| Overall Length (mm) | 63.5000 |
| Chamfer | Plug |
| Coating/Finish | TiN |
| Thread Limit | D8 |
| Thread Pitch (mm) | 1.00 |
| Thread Standard | Metric |
| Thread Direction | Right Hand |
| Material | High Speed Steel |
| Thread Length (mm) | 15.88 |
| Thread Depth (mm) | 25.40 |
| Thread Depth | 25.4000 |
| Shank Diameter (mm) | 6.4800 |
| Neck Length | 9.53 |
| Square Length (mm) | 7.94 |
| Material Application | Non-Ferrous Metal; Stainless Steel; Cast Iron; Steel |
| Application | Metal |
| Series | 2510 |
| Tap Type | Blind; Through |
| Tapping Depth (mm) | 25.40 |
| Shank Length (mm) | 38.100 |
| Square Size (mm) | 4.85 |
| Threads per Inch | 25 |
| Class Of Fit | 6H |
| Coolant Through | No |
