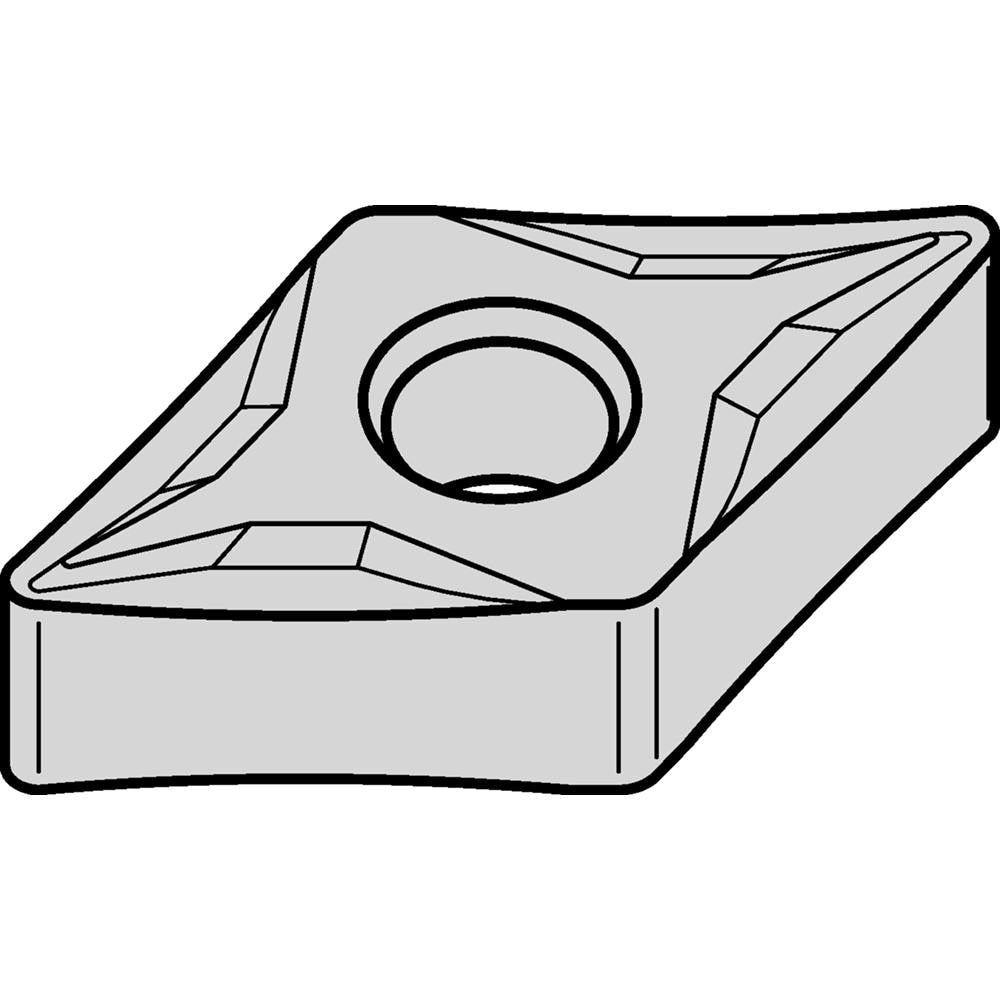

Brand: Widia / Part #: 4172488

Brand: Widia / Part #: 4172488


Item #: 95267092
Brand: Widia
Model #: 4172488

Product Specifications

Insert Style DNMP
Insert Shape Code D
Insert Size Code 443
Insert Shape Diamond
Coating/Finish AlTiSiN
Manufacturer Grade WS10PT
Corner Radius (Decimal Inch) 0.0472
Insert Material Carbide
Hole Diameter (Decimal Inch) 0.2031
Maximum Depth of Cut (Decimal Inch) 0.3052
Inscribed Circle (Decimal Inch) 0.5000
Insert Holding Method Clamp
Insert Hand Neutral
Insert Thickness (Decimal Inch) 0.2500
Clearance Code N
Tolerance Code M
Included Angle 55.00
Relief Angle 0.000
Series DNMP
Coating Process PVD
Rake Negative
Wiper Edge No
Insert Length (Decimal Inch) 0.6104
Number Of Cutting Edges 2
Primary Workpiece Material Super-alloys & Titanium
Primary Workpiece Material Code S
Secondary Workpiece Material Stainless Steel; Steel
Secondary Workpiece Material Code P; M
Ansi Code DNMP443
Iso Code DNMP150612
Manufacturers Catalog Number DNMP443
Cutting Direction Neutral
Coating Classification PVD
Chip Breaker None
Style DNMP
Width (Decimal Inch - 4 Decimals) 0.5000
Multi-Use Tool Yes
Full Radius No
Multi-Use Application External Turning; Internal Turning
$ 23.27
