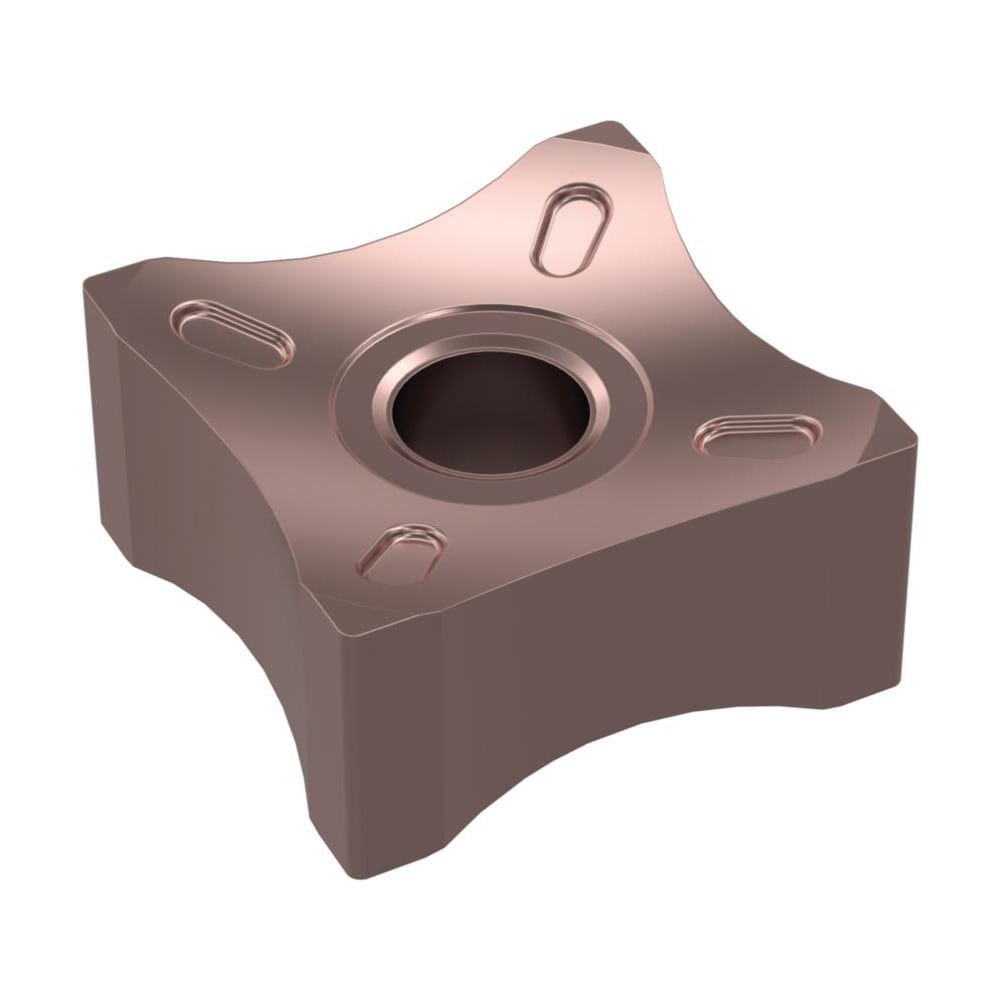

Brand: Widia / Part #: 6713865
Item #: 95964037
Brand: Widia
Model #: 6713865
Product Specifications
| Insert Style | SNMX |
| Insert Shape Code | S |
| Insert Size Code | 1507 |
| Insert Shape | Square |
| Coating/Finish | TiCN; TiN; ZrCN; Al2O3 |
| Manufacturer Grade | WP25CT |
| Corner Radius (Decimal Inch) | 2.3622 |
| Insert Material | Carbide |
| Hole Diameter (Decimal Inch) | 0.1996 |
| Maximum Depth of Cut (Decimal Inch) | 0.3125 |
| Inscribed Circle (Decimal Inch) | 0.6250 |
| Insert Holding Method | Clamp |
| Insert Hand | Neutral |
| Insert Thickness (Decimal Inch) | 0.3126 |
| Clearance Code | N |
| Tolerance Code | M |
| Included Angle | 90.00 |
| Relief Angle | 0.000 |
| Series | SNMX |
| Coating Process | MTCVD |
| Rake | Negative |
| Wiper Edge | No |
| Insert Length (Decimal Inch) | 0.6250 |
| Number Of Cutting Edges | 8 |
| Primary Workpiece Material | Steel |
| Primary Workpiece Material Code | P |
| Secondary Workpiece Material | Cast Iron |
| Secondary Workpiece Material Code | K |
| Ansi Code | SNMX1507R60 |
| Iso Code | SNMX1507R60 |
| Manufacturers Catalog Number | SNMX1507R60 |
| Cutting Direction | Neutral |
| Coating Classification | Multi-Layered CVD |
| Chip Breaker | 15 |
| Style | SNMX |
| Width (Decimal Inch - 4 Decimals) | 0.6250 |
| Multi-Use Tool | Yes |
| Full Radius | No |
| Multi-Use Application | External Turning; Internal Turning |
