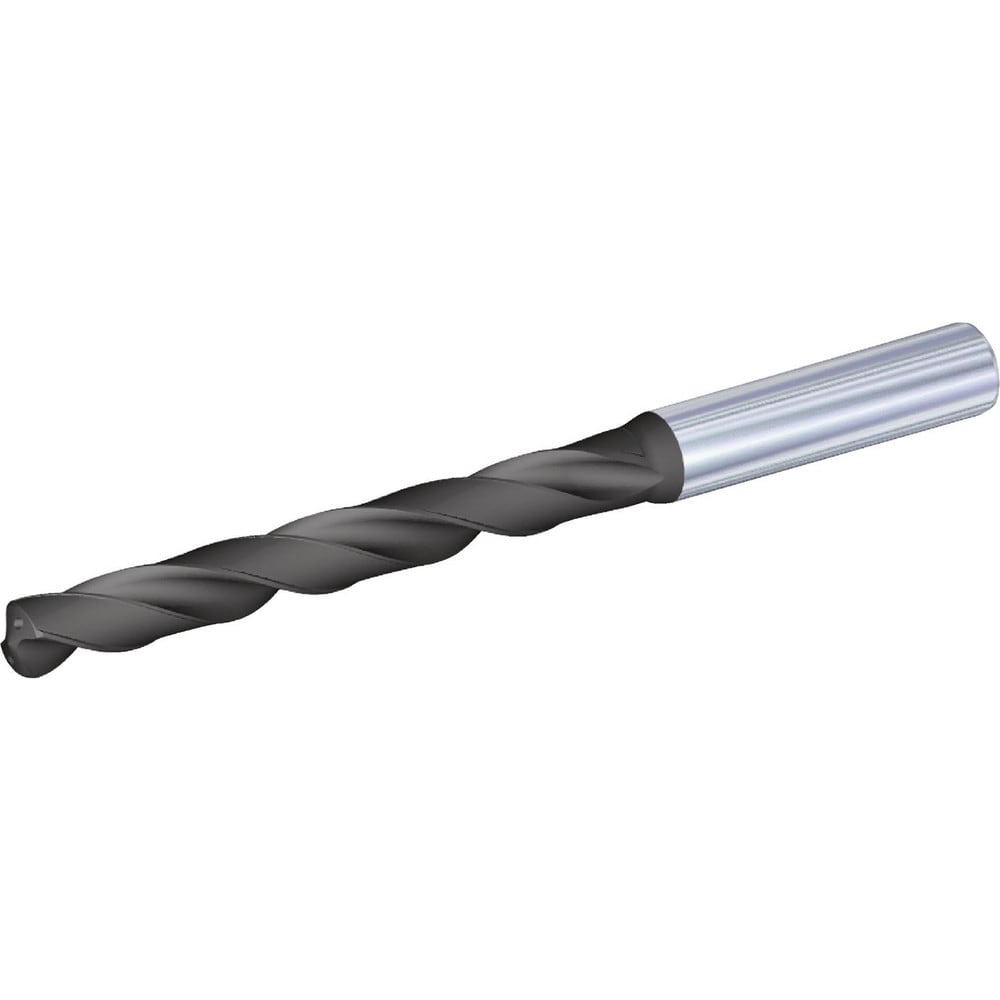

Brand: Widia / Part #: 6328340
Item #: 03033677
Brand: Widia
Model #: 6328340
Product Specifications
| Drill Bit Size (mm) | 9.60 |
| Overall Length (mm) | 135.0000 |
| Flute Length (mm) | 92.00 |
| Tool Material | Carbide |
| Coating/Finish | AlTiN |
| Drill Point Angle | 140 |
| Shank Type | Cylindrical |
| Coolant Through | Yes |
| Flute Type | Spiral |
| Series | TDS453A |
| Point Type | Double Margin |
| Cutting Direction | Right Hand |
| Tool Application | Deep Hole Drilling |
| Spiral Type | Regular |
| Drill Bit Diameter Tolerance | 0.000200 to 0.000800 in |
| Number Of Flutes | 2 |
| Primary Workpiece Material | Stainless Steel |
| Primary Workpiece Material Code | M |
| Secondary Workpiece Material | Superalloys & Titanium; Steel |
| Secondary Workpiece Material Code | P; S |
| Drill Bit Grade | WM15PD |
| Drill Point Length (mm) | 1.64 |
| Shank Diameter (mm) | 10.0000 |
| Shank Length (mm) | 40.000 |
| Flute By Diameter Ratio | 8xD |
| Maximum Drilling Depth (mm) | 80.00 |
