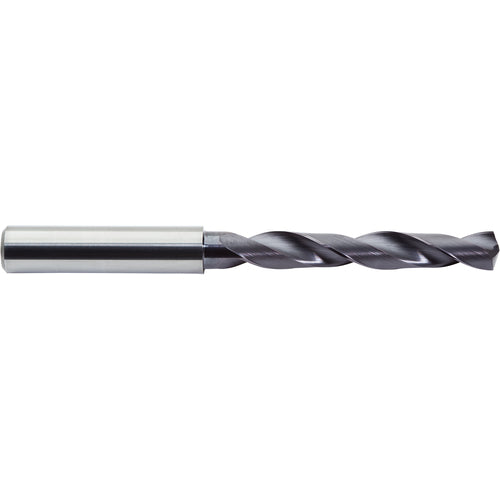

TIN DRILL 5/32 REGULAR
Item #: AX272XDSR1562T
Brand: M A Ford
Model #: 2XDSR1562T
| Product Specifications | |
|---|---|
| Drill Bit Size / Cutting Diameter (DC) | 5/32″ |
| Coolant Supply Property (CSP) | External |
| Drill Bit Size / Cutting Diameter (DC) - Inch | 5/32″ |
| Point Angle (SIG) | 140 Degrees-142 Degrees |
| Decimal Equivalent | 0.1563″ |
| Measurement Type | Inch |
| Length Group | 8xD |
| Usable Length (LU) | 1.26″ |
| Coating | TiN |
| Overall Length (OAL) | 2-3/4″ |
| Connection Diameter Machine Side (DCONMS) | 5/32″ |
| Flute Count (NOF) | 2 |
