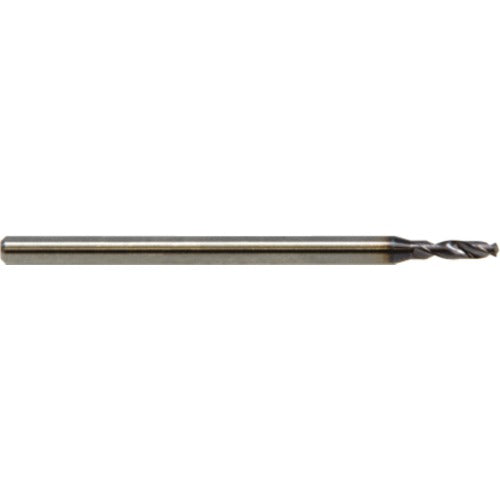

1.55 mm Dia. × 3.0 mm Shank × 6 mm Flute Length × 45 mm OAL, 2xD, 142°, ALtimaÂ, 2 Flute, Coolant Thru, Solid Carbide Drill
Item #: AX2804885
Brand: M A Ford
Model #: MPDCSM0155A
| Product Specifications | |
|---|---|
| Drill Bit Size / Cutting Diameter (DC) | 1.55 mm |
| Flute Helix Angle (FHA) | 30 Degrees |
| Decimal Equivalent | 0.061″ |
| Cutting Edge Material | Carbide |
| Drill Bit Size / Cutting Diameter (DC) - Metric | 1.55 mm |
| Measurement Type | Metric |
| Length Group | 2xD |
| Series/List # | MPDCS |
| Coating | ALtima |
| Usable Length (LU) | 5 mm |
| Connection Diameter Machine Side (DCONMS) | 3 mm |
| Length Chip Flute (LCF) | 6 mm |
| Coolant Supply Property (CSP) | Coolant Thru |
| Overall Length (OAL) | 45 mm |
| Point Angle (SIG) | 142 Degrees |
| Flute Count (NOF) | 2 |
