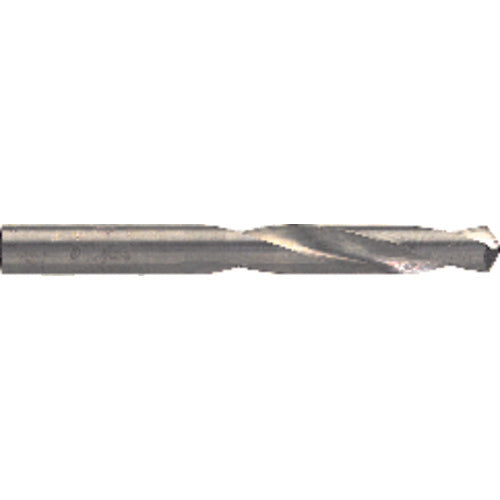

1/16″ Dia. × 1/16″ Shank × 3/4″ Flute Length × 1-1/2″ OAL, 5XD, 118°, Uncoated, 2 Flute, External Coolant, Round Solid Carbide Drill
Item #: AX4024169
Brand: M A Ford
Model #: 20406250
| Product Specifications | |
|---|---|
| Drill Bit Size / Cutting Diameter (DC) | 1/16″ |
| Shank Type | Round |
| Drill Bit Size / Cutting Diameter (DC) - Inch | 1/16″ |
| Cutting Edge Material | Carbide |
| Decimal Equivalent | 0.0625″ |
| Tool Type | Jobber Drill |
| Length Group | 5xD |
| Point Shape | Standard |
| Coating | Uncoated |
| Measurement Type | Inch |
| Connection Diameter Machine Side (DCONMS) | 1/16″ |
| Usable Length (LU) | 3/4″ |
| Coolant Supply Property (CSP) | External |
| Length Chip Flute (LCF) | 3/4″ |
| Point Angle (SIG) | 118 Degrees |
| Overall Length (OAL) | 1-1/2″ |
| Flute Helix Angle (FHA) | 21 Degrees |
| Flute Count (NOF) | 2 |
