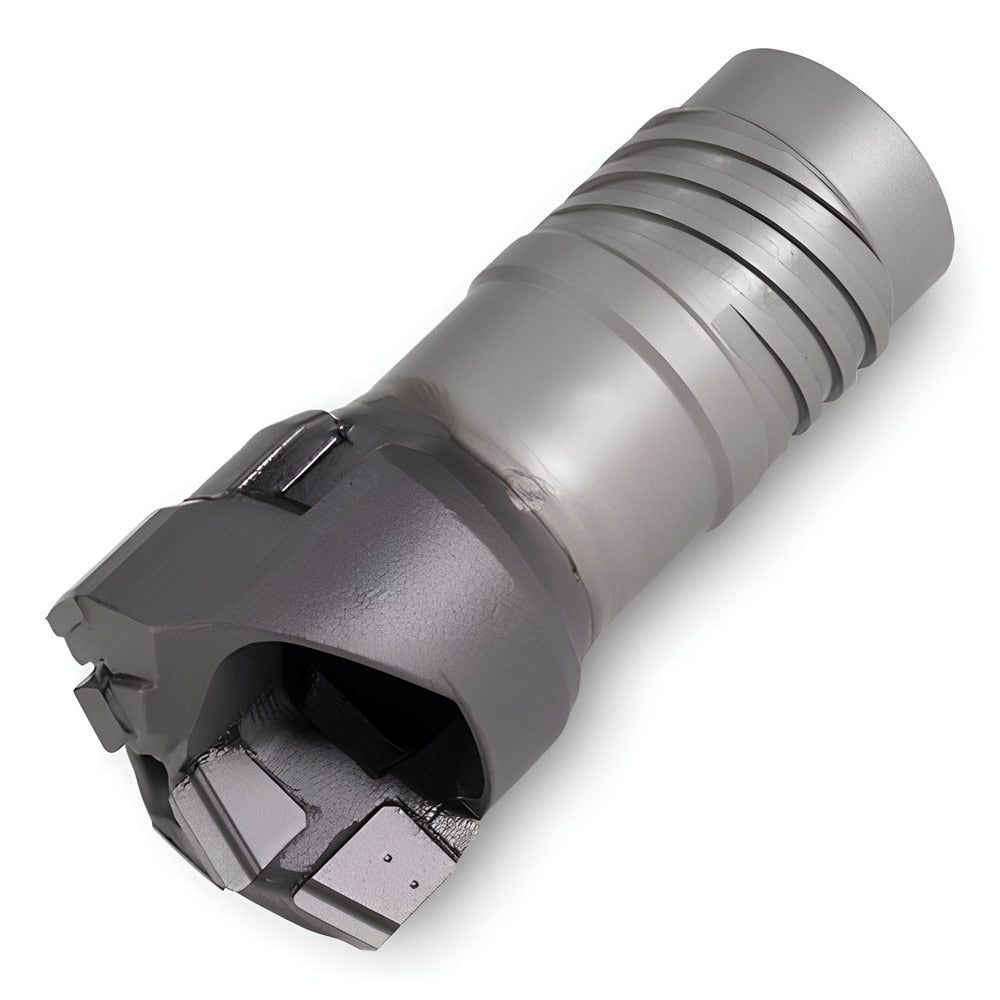

Brand: Ingersoll Cutting Tools / Part #: 4801166
Item #: 48108419
Brand: Ingersoll Cutting Tools
Model #: 4801166
Product Specifications
| Maximum Drill Diameter (Decimal Inch) | 1.5000 |
| Diameter (Decimal Inch) | 1.5000 |
| Point Angle | 45.00 |
| Tip Material | Solid Carbide |
| Manufacturer Grade | TB274 |
| Cutting Direction | Right Hand |
| Series | BTA...SE4 |
| Coating Process | PVD |
| Primary Workpiece Material | Universal |
| Height (Decimal Inch) | 2.890000 |
| Head Length (Decimal Inch) | 2.8900 |
| Flute Type | Helical |
| Insert Holding Method | Pin |
| Overall Length (mm) | 73.4100 |
| ISO Number | BTA1.500SE4-33 TB274 |
| Coolant Through | Yes |
| Cutting Diameter (Decimal Inch) | 1.5000 |
| Flute Length (mm) | 68.58 |
| Spiral Type | Regular |
| Style | BTA...SE4 |
| Coating Classification | PVD |
| Applications | Drilling |
| Coating/Finish | TiN |
| Number Of Flutes | 2 |
