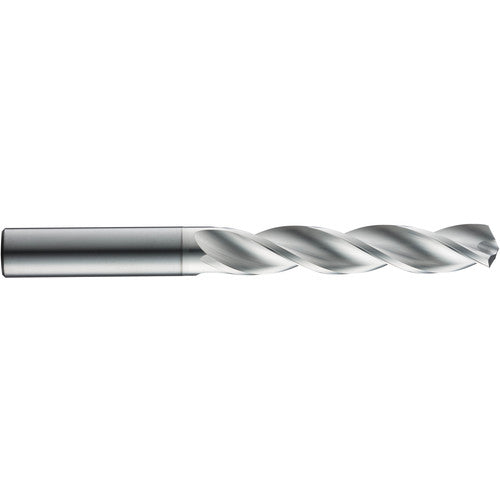

1/4″ Dia. × 8 mm Shank × 34 mm Flute Length × 79 mm OAL, 3xD, 124°, TB, 3 Flute, External, Round Solid Carbide Drill
Item #: AX6054710
Brand: KYOCERA SGS Precision Tools
Model #: 54710
| Product Specifications | |
|---|---|
| Drill Bit Size / Cutting Diameter (DC) | 1/4″ |
| Cutting Edge Material | Carbide |
| Drill Bit Size / Cutting Diameter (DC) - Inch | 1/4″ |
| Tool Type | Drill |
| Decimal Equivalent | 0.25″ |
| Flute Type | Spiral |
| Length Group | 3xD |
| Measurement Type | Inch |
| Coating | TB |
| Series/List # | 131N |
| Connection Diameter Machine Side (DCONMS) | 8 mm |
| Usable Length (LU) | 34 mm |
| Coolant Supply Property (CSP) | External |
| Length Chip Flute (LCF) | 34 mm |
| Point Angle (SIG) | 124 Degrees |
| Overall Length (OAL) | 79 mm |
| Flute Helix Angle (FHA) | 30 Degrees |
| Flute Count (NOF) | 3 |
| Shank Type | Round |
| Cutting Direction (HAND) | Right Hand |
