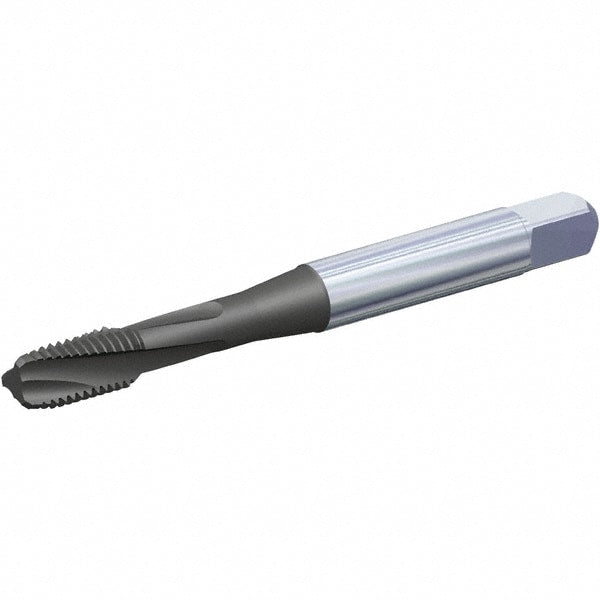

Brand: Kennametal / Part #: 5708288
Item #: 57449118
Brand: Kennametal
Model #: 5708288
Product Specifications
| Thread Size (Inch) | 3/4-10 |
| Chamfer | Modified Bottoming |
| Thread Limit | H3 |
| Number Of Flutes | 3 |
| Material | Vanadium High Speed Steel |
| Thread Direction | Right Hand |
| Flute Direction | Right Hand |
| Coating/Finish | Oxide |
| Coolant Through | No |
| Overall Length (Inch) | 4-1/4 |
| Thread Length (Decimal Inch) | 1.5900 |
| Thread Length (mm) | 40.40 |
| Overall Length (Decimal Inch) | 4.2500 |
| Thread Standard | UNC |
| Helix Angle | 10 |
| Shank Diameter (Decimal Inch) | 0.5900 |
| Shank Diameter (mm) | 14.99 |
| Neck Length (Decimal Inch) | 0.4900 |
| Tapping Depth (Decimal Inch) | 2.0800 |
| Tapping Depth (mm) | 53.00 |
| Flute Style | Slow |
| Material Application | Nickel Alloy |
| Series | T692 |
