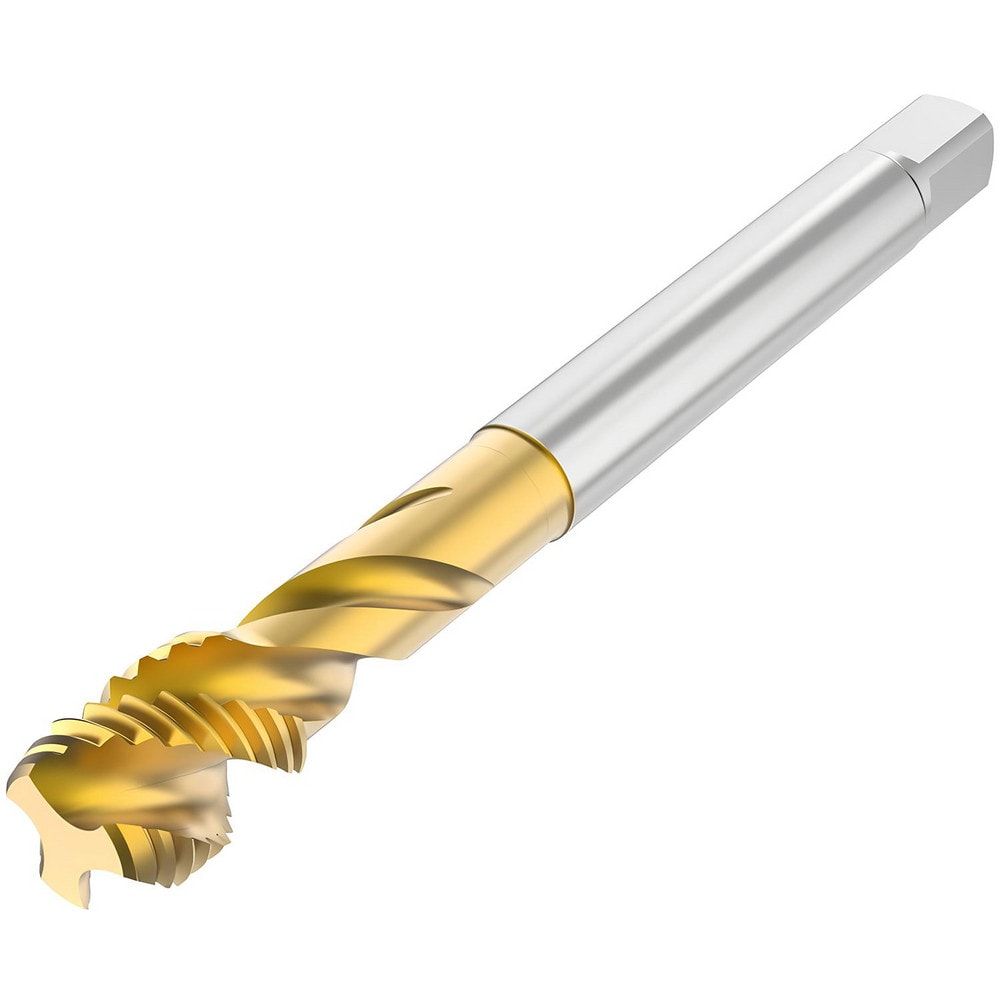

Brand: Seco / Part #: 10139630
Item #: 97422273
Brand: Seco
Model #: 10139630
Product Specifications
| Thread Size (Inch) | 5/8-18 |
| Chamfer | Modified Bottoming |
| Class Of Fit | 2B |
| Number Of Flutes | 4 |
| Material | HSS-E |
| Threads per Inch | 18 |
| Thread Direction | Right Hand |
| Flute Direction | Right Hand |
| Coating/Finish | TN |
| Thread Depth (mm) | 15.00 |
| Coolant Through | No |
| Thread Length (mm) | 15.00 |
| Overall Length (mm) | 100.0000 |
| Thread Pitch (Decimal Inch) | 0.0556 |
| Thread Pitch (mm) | 1.41 |
| Thread Standard | UNF |
| Helix Angle | 40.00 |
| Oversize | No |
| Application | Blind Hole Threading |
| Shank Diameter (mm) | 12.0000 |
| Neck Length (mm) | 43.00 |
| Tapping Depth (mm) | 58.00 |
| Flute Style | Spiral |
| Material Application | Non-Ferrous Metal; Stainless Steel; Cast Iron; Steel |
| Series | T32 |
| Shank Length (mm) | 42.000 |
