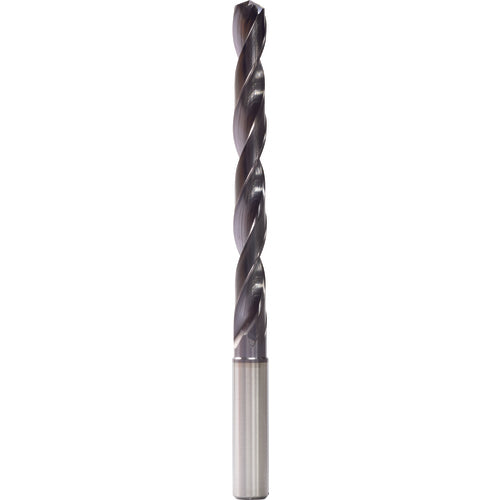

1 mm Dia. × 3 mm Shank × 8 mm Flute Length × 55 mm OAL, 5xD, 140°, TiAlN, 2 Flute, Internal, Round Solid Carbide Drill
Item #: AX8250301
Brand: Rapidkut
Model #: AX8250301
| Product Specifications | |
|---|---|
| Drill Bit Size / Cutting Diameter (DC) | 1 mm |
| Shank Type | Round |
| Decimal Equivalent | 0.0394″ |
| Cutting Edge Material | Carbide |
| Drill Bit Size / Cutting Diameter (DC) - Metric | 1 mm |
| Tool Type | Drill |
| Length Group | 5xD |
| Measurement Type | Metric |
| Coating | TiAlN |
| Usable Length (LU) | 8 mm |
| Connection Diameter Machine Side (DCONMS) | 3 mm |
| Length Chip Flute (LCF) | 8 mm |
| Coolant Supply Property (CSP) | Coolant Thru |
| Overall Length (OAL) | 55 mm |
| Point Angle (SIG) | 140 Degrees |
| Flute Count (NOF) | 2 |
| Flute Helix Angle (FHA) | 30 Degrees |
| Cutting Direction (HAND) | Right Hand |
