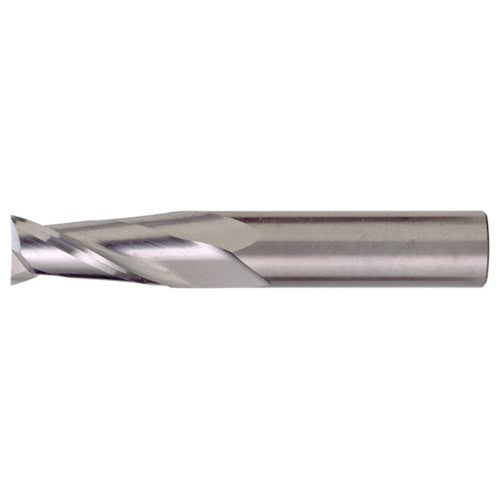

5/8″ × 5/8″ × 1-1/4″ × 3-1/2″ RHS / RHC Solid Carbide 2-Flute Square End Single End General Purpose End Mill - TiAlN
Item #: BA10B00064
Brand: Bassett
Model #: B00064
| Product Specifications | |
|---|---|
| Cutting Diameter (DC) | 5/8″ |
| Tool Type | End Mill |
| Connection Diameter Machine Side (DCONMS) | 5/8″ |
| Length Group | Regular |
| Depth of Cut Maximum (APMX) | 1-1/4″ |
| Flute Type | Spiral |
| Overall Length (OAL) | 3-1/2″ |
| Decimal Equivalent | 0.625″ |
| Cutting Edge Material | Carbide |
| Measurement Type | Inch |
| Coating | AlTiN |
| Series/List # | MSE-2-TA |
| Flute Count (NOF) | 2 |
| Cutting Direction (HAND) | Right Hand |
| Flute Helix Angle (FHA) | CW |
| Single / Double End | Single End |
| Shank Type | Round |
| Center Cutting | Yes |
| End Shape | Corner Radius |
