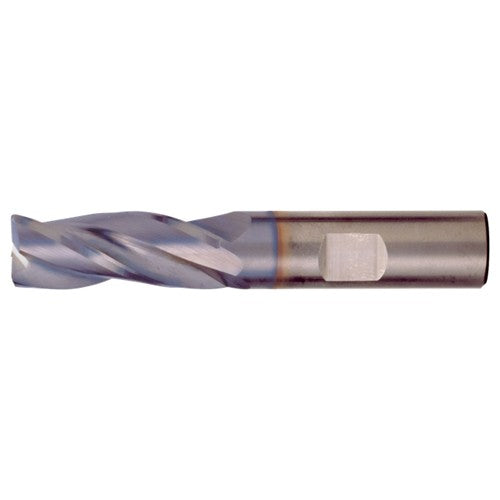

5/8″ × 5/8″ × 1-5/8″ × 4″ RHS / RHC Solid Carbide 3-Flute Square End High-Performance End Mill for Steel and Stainless Steel - Bright
Item #: BA10B05166
Brand: Bassett
Model #: B05166
| Product Specifications | |
|---|---|
| Cutting Diameter (DC) | 5/8″ |
| Corner Radius (RE) | 0.03″ |
| Connection Diameter Machine Side (DCONMS) | 5/8″ |
| Tool Type | End Mill |
| Depth of Cut Maximum (APMX) | 1-5/8″ |
| Length Group | Regular |
| Overall Length (OAL) | 4″ |
| Flute Type | Spiral |
| Cutting Edge Material | Carbide |
| Decimal Equivalent | 0.625″ |
| Coating | Bright |
| Measurement Type | Inch |
| Flute Count (NOF) | 3 |
| Series/List # | HPEM-3 |
| Flute Helix Angle (FHA) | CW |
| Cutting Direction (HAND) | Right Hand |
| Shank Type | Weldon |
| Single / Double End | Single End |
| End Shape | Corner Radius |
| Center Cutting | Yes |
| Applicable Material | Stainless Steel |
