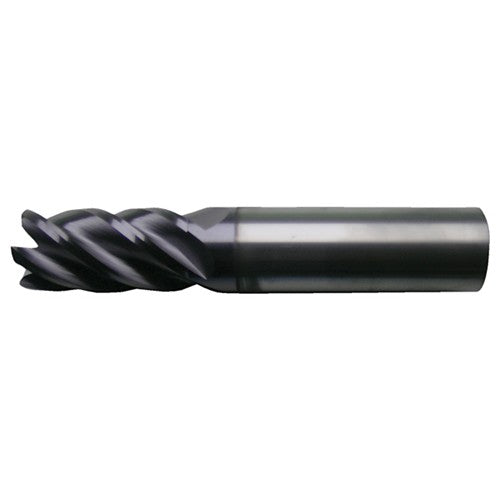

1/2″ × 1/2″ × 1″ × 3″ RHS / RHC Solid Carbide 5-Flute High-Performance End Mill for Ferrous Materials - TiAlN
Item #: BA10B60424
Brand: Bassett
Model #: B60424
| Product Specifications | |
|---|---|
| Cutting Diameter (DC) | 1/2″ |
| Corner Radius (RE) | 0.03″ |
| Connection Diameter Machine Side (DCONMS) | 1/2″ |
| Tool Type | End Mill |
| Depth of Cut Maximum (APMX) | 1″ |
| Length Group | Regular |
| Overall Length (OAL) | 3″ |
| Flute Type | Spiral |
| Cutting Edge Material | Carbide |
| Decimal Equivalent | 0.5″ |
| Coating | AP/MAX |
| Measurement Type | Inch |
| Flute Count (NOF) | 5 |
| Series/List # | MSE-V2-5R-TA |
| Flute Helix Angle (FHA) | CW |
| Cutting Direction (HAND) | Right Hand |
| Shank Type | Round |
| Single / Double End | Single End |
| End Shape | Corner Radius |
| Center Cutting | Yes |
