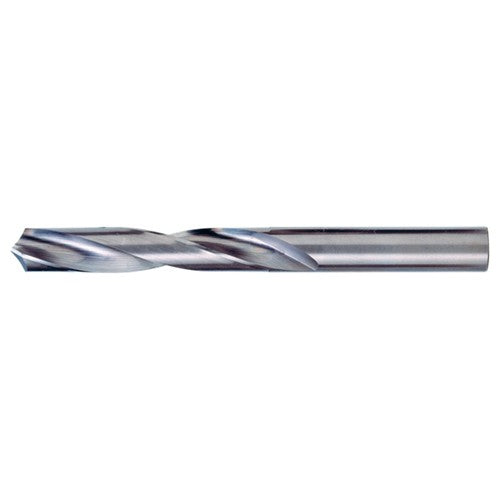

7/32″ Dia. × 0.219″ Shank × 1-3/4″ Flute Length × 3″ OAL, 118°, Bright, 2xD Flute, Round Solid Carbide Drill
Item #: BA11B53647
Brand: Bassett
Model #: B53647
| Product Specifications | |
|---|---|
| Drill Bit Size / Cutting Diameter (DC) | 7/32″ |
| Cutting Edge Material | Carbide |
| Drill Bit Size / Cutting Diameter (DC) - Inch | 7/32″ |
| Tool Type | Drill |
| Decimal Equivalent | 0.2188″ |
| Flute Type | Spiral |
| Length Group | Jobber |
| Point Shape | 4 Facet |
| Coating | Bright |
| Measurement Type | Inch |
| Connection Diameter Machine Side (DCONMS) | 7/32″ |
| Series/List # | DR |
| Point Angle (SIG) | 118 Degrees |
| Length Chip Flute (LCF) | 1-3/4″ |
| Flute Helix Angle (FHA) | CW |
| Overall Length (OAL) | 3″ |
| Shank Length (LS) | 1-1/4″ |
| Flute Count (NOF) | 2 |
| Shank Type | Round |
| Cutting Direction (HAND) | Right Hand |
| Shape | Jobber Drill |
